Coltri Ergo 270 TPS SH Compressor
Description

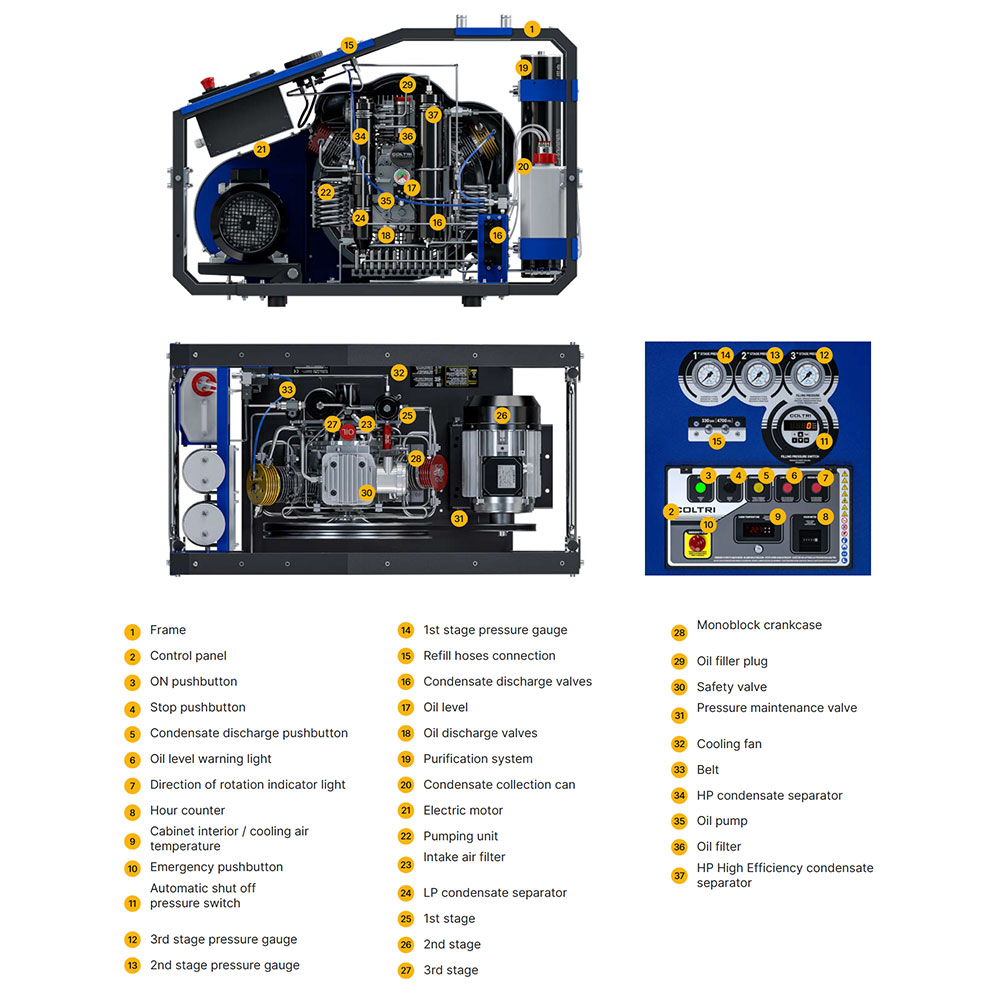

The ERGO TPS is the ideal choice for those seeking a compact yet powerful breathing air compressor. Equipped with four TPS (Tropical Plus Superdry) pumping units, the ERGO TPS offers the flexibility of electric motors or engines—choose from Honda for petrol versions or Kohler for diesel compressors. Its control panel includes a full monitoring system with pressure gauges, an autostop feature with an adjustable electronic pressure switch, automatic condensate drainage, and rotation direction control. With two high-pressure hose connections and an enhanced filtration system featuring dual Hyperfilters, the ERGO TPS ensures superior performance and air quality. A remote charging panel is also available as an optional upgrade.

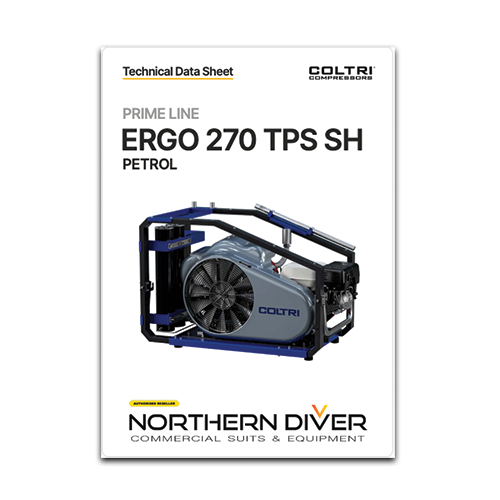

Download the Technical Data Sheet for full specifications and optional extras.
Key Features
- Type of gas : Breathing air EN 12021 - Nitrox 40% max O2 - Helium - Nitrogen
- Intake pressure: Atmospheric max 300 bar
- Nominal pressure: 250 bar/330 bar/360 bar
- Working pressure: 232 bar/300 bar/330 bar
- Max working pressure: 420 bar
- Permissible ambient temperature range: -10° C ÷ +40° C
- Permissible altitude: 0 ÷ 1.500 m SLM
- Max permissible tilt: 15°
- Design: Open
- Oil: Olio sintetico Coltri ST 755
- Oil change interval: 1 year/1.000 h
- Frame: Steel - Colour RAL 5002 - Powder coating painting - Scratch proof
