Coltri Force Four Electric Compressor
Description
The FORCE FOUR model is designed to meet professional demands for large charging capacities, ideal for hot, poorly ventilated environments or tropical regions. It features an intuitive control panel and an electric motor, with a choice of four powerful pumping units exposed for optimal cooling. The FORCE FOUR is fitted with the Hyperfilter purification system in a standalone setup, complete with automatic condensate drainage. For extended filter life, the Tornado high-pressure dryer is recommended. Optional upgrades include the Presec system for monitoring filter saturation, oversized Megafilter cartridges, and a remote refill panel with 2 or 4 outlets.

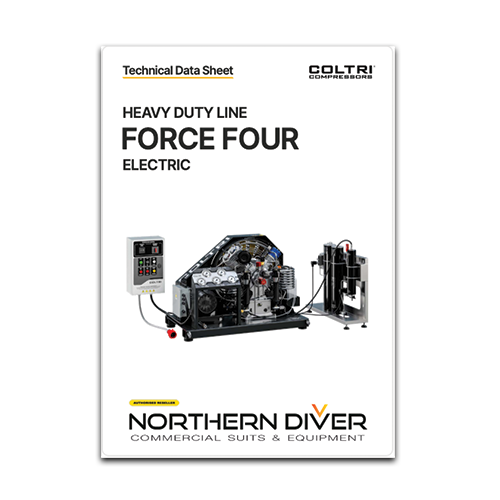

Download the Technical Data Sheet for full specifications and optional extras.
Download the Technical Data Sheet for full specifications and optional extras.
Key Features
- Type of gas: Breathing air EN 12021 - Nitrox 40% max O2 - Helium - Nitrogen
- Intake pressure: Atmospheric max 300 bar
- Nominal pressure: 250 bar / 330 bar / 360 bar
- Working pressure: 232 bar / 300 bar / 330 bar
- Max working pressure: 420 bar
- Permissible ambient temperature range: -10° C ÷ +40° C
- Permissible altitude: 0 ÷ 1.500 m SLM
- Max permissible tilt: 15°
- Design: Basic
- Operating voltage: 230 V, 60 Hz / 400 V, 50 Hz
- Other operating voltage: 230 V, 50 Hz / 440 V, 60 Hz
- Oil: Synthetic Coltri Oil ST 755
- Oil change interval: 1 year / 1.000 h
- Frame: Steel - Colour RAL 9005 - Powder coating painting - Scratch proof
