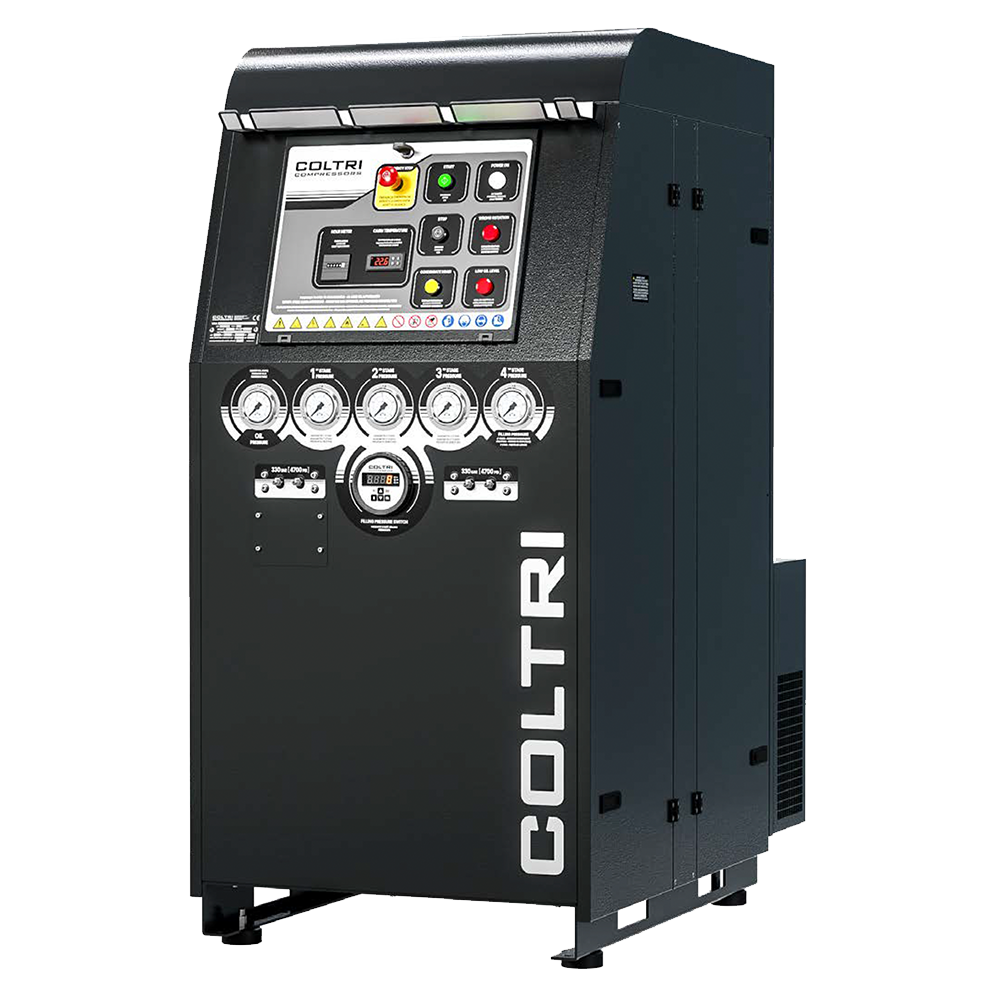

Coltri Silent Electric Compressor
Description
The SILENT model sets a new standard for soundproofing, operating below 70 dB, making it ideal for intensive use and high refill capacities. It is equipped with four front high-pressure filling connections and an easy-to-use control panel, powered by an electric motor and robust pumping units. For extended filter life, we recommend the Tornado high-pressure dryer. Optional features include the Presec system for monitoring filter saturation, the SAM system for multigas analysis, and a remote charging panel for added convenience.
Download the Technical Data Sheet for full specifications and optional extras.
Download the Technical Data Sheet for full specifications and optional extras.
Key Features
- Type of gas: Breathing air EN 12021 - Nitrox 40% max O2 - Helium - Nitrogen
- Intake pressure: Atmospheric max 300 millibar
- Nominal pressure: 250 bar / 330 bar / 360 bar
- Filling pressure: 232 bar / 300 bar / 330 bar
- Max working pressure: 420 bar
- Permissible ambient temperature range: -10° C ÷ +40° C
- Permissible altitude: 0 ÷ 1.500 m SLM
- Max permissible tilt: 15°
- Design: Silenced
- Operating voltage: 400 V, 50 Hz
- Other operating voltage: 230 V, 50 Hz / 230 V, 60 Hz / 440 V, 60 Hz
- Oil: Synthetic Coltri Oil ST 755
- Oil change interval: 1 year / 1.000 h
- Frame: Steel - colour Black RAL 9005 - Powder coating painting - scratch proof
