Digital Depth Gauge
Description
Our Digital Depth Gauge provides state-of-the-art technology and electronic accuracy. You can clearly and accurately view information such as depth, maximum depth, dive duration etc. Depth-rated to 100m (328'), it gives excellent performance and accuracy for every kind of dive. Other features include time accuracy and data logging. The Digital Depth Gauge is supplied with a user manual.
SPECIFICATION
- EN 133319:2002 and conforms with 2001/95/EC
- White colour OLED display
- 170° viewing angle
- Displays current depth, max depth, dive duration
- Simple single button operation
- Adjustable screen brightness
- Saves a record of the dive, which can be transferred to a computer
- Gauge settings can also be changed via a computer
- Maximum operational depth: 100m (328')
- Depth accuracy: sensor is accurate to within 8cm at depths of 100m (328') or more
- Depth resolution: 0.1m (0.3’)
- Time accuracy: 2 sec/day
- Dive duration: over 50 hrs continuous battery life diving on a single battery
- Data logging rate: 3 samples/ second
- Stored dive history: 20 data sets
- Dive data download link: Optical serial through front panel
- Display: 40*30mm (1.6*1.2”) single colour dot matrix OLED

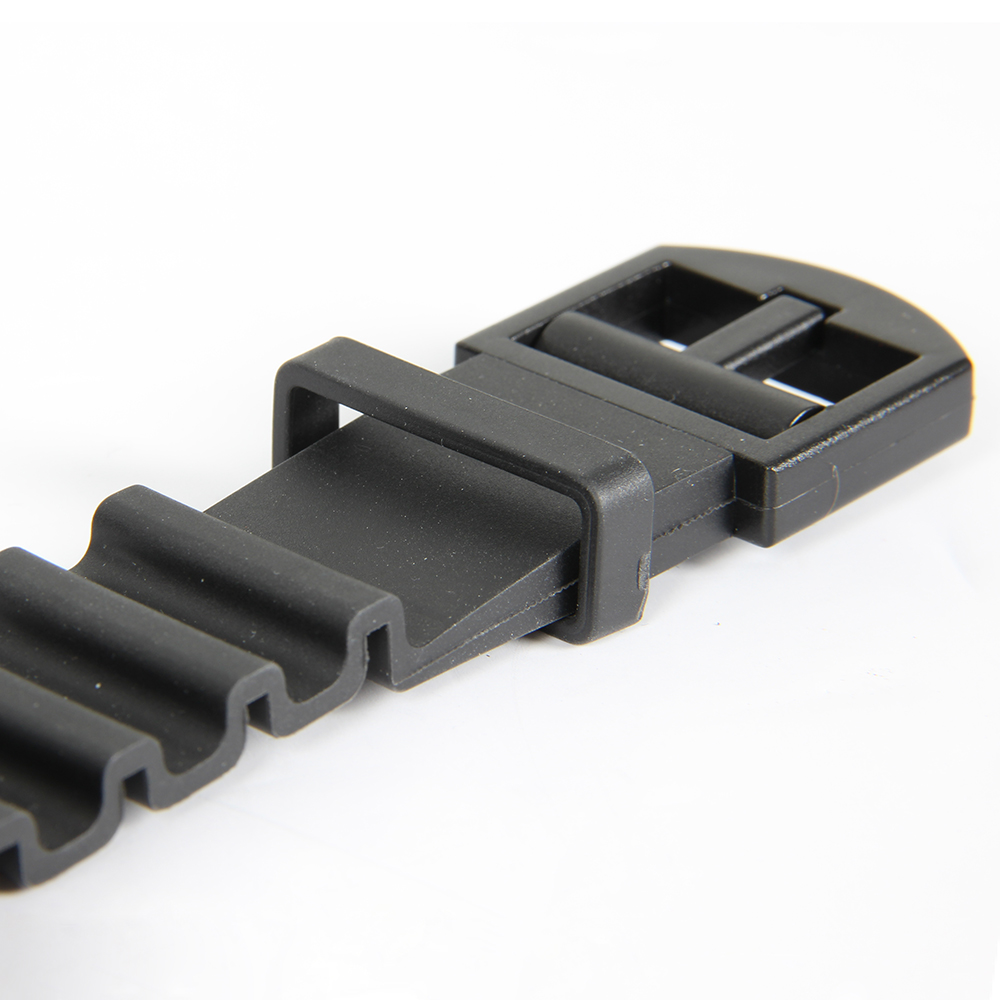

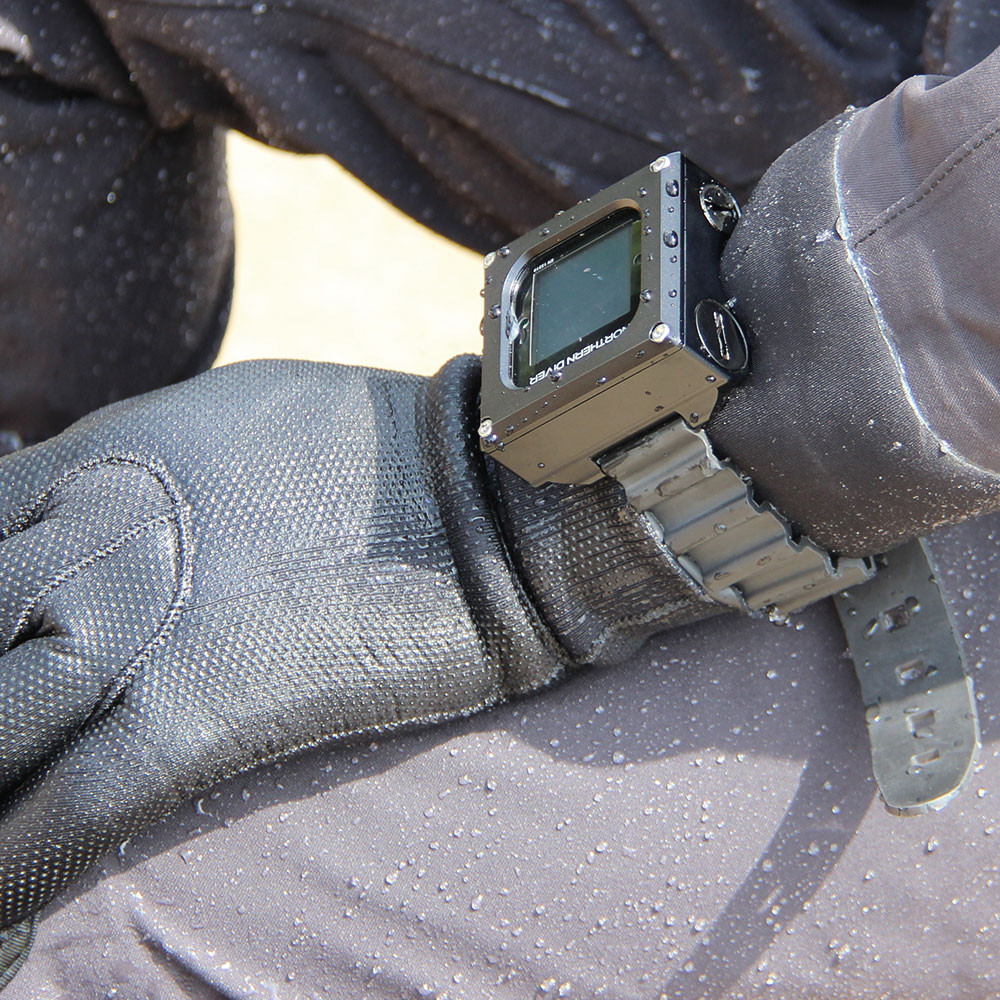

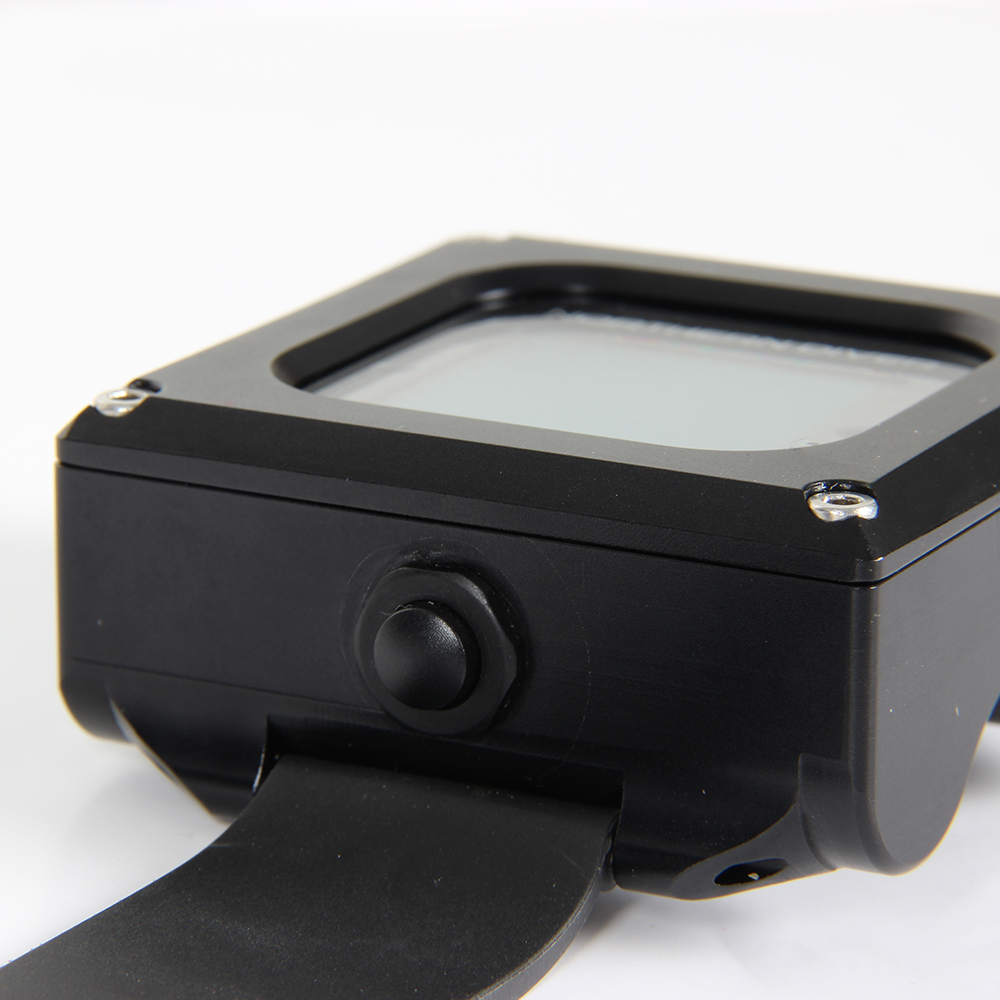

- Case: machined aluminium and plastic wrist mounted with flexible strap

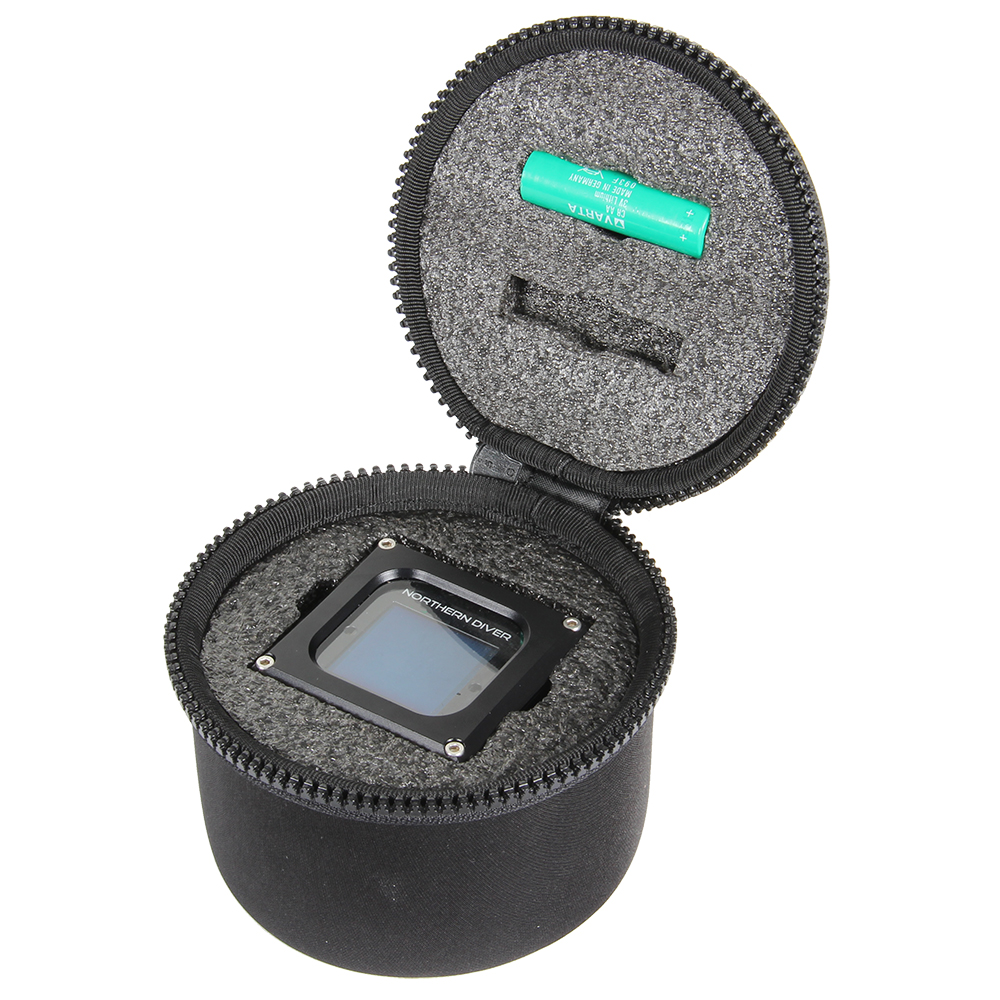

- Power source: non rechargeable Lithium battery with visual indication of remaining power

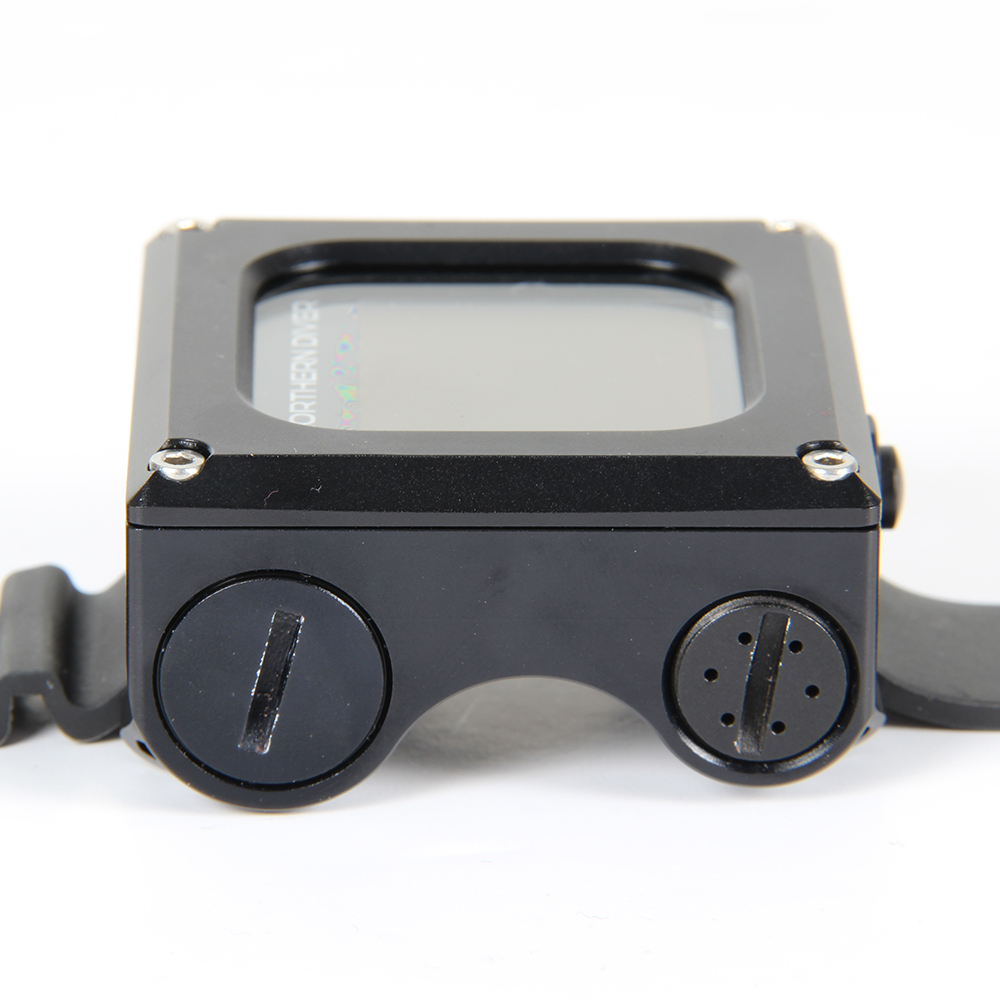

- Battery replacement: customer technician – no special tools
- Battery duration:
- Full brightness display: 20h continuous
Dim display: 30h continuous
Display off: 100h continuous
- Full brightness display: 20h continuous
- Standby: 1 year
- Power switch: manual with default dim display brightness with auto power off
- Weight: 190g
- Gauge dimensions: 6x6x3cm
- Packaging weight: 200g
- Packaging dimensions: 12x12x10cm
- Docking station weight & dimensions are the same
ADDITIONAL PARTS

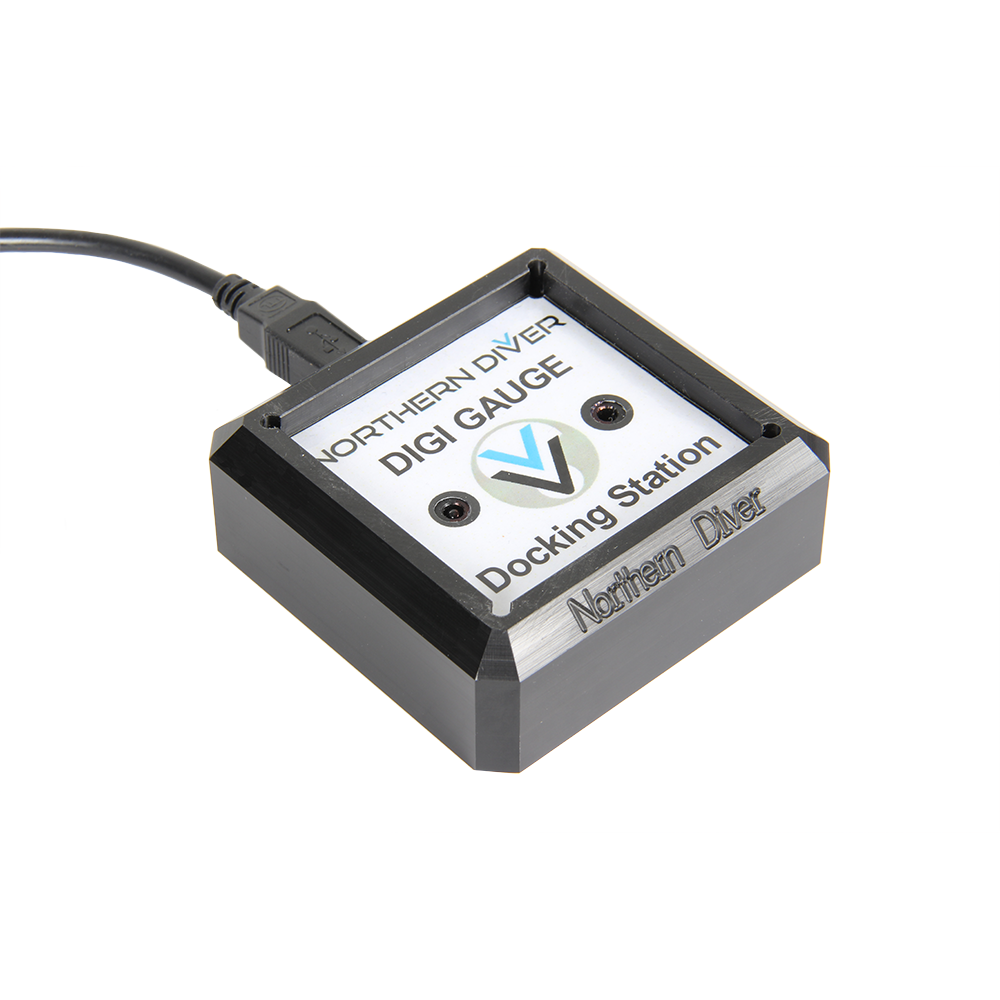

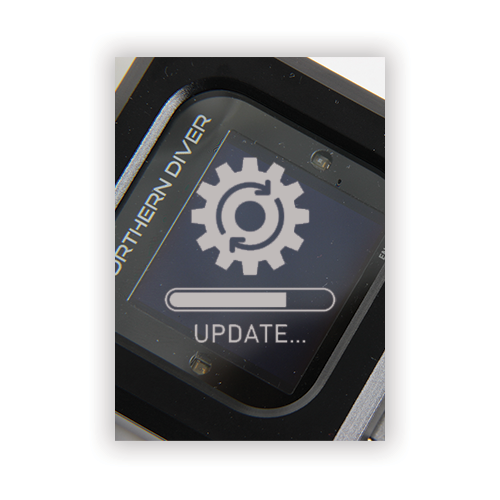

The Digital Depth Gauge Docking Station can be used with the Digital Depth Gauge to change internal settings and extract dive log details. After installing the software on a computer, data can be transferred via a USB cable.
FOR MORE INFORMATION CONTACT OUR SALES TEAM.
Key Features
- Depth-rated to 100m (328')
- Time accuracy
- Data Logging
- White colour OLED display
- Adjustable screen brightness
- Over 50 hrs continuous battery life diving on a single battery
- 40*30mm (1.6*1.2”) single colour dot matrix OLED
