PRS-275 Pinger Receiver Location Systems
Description

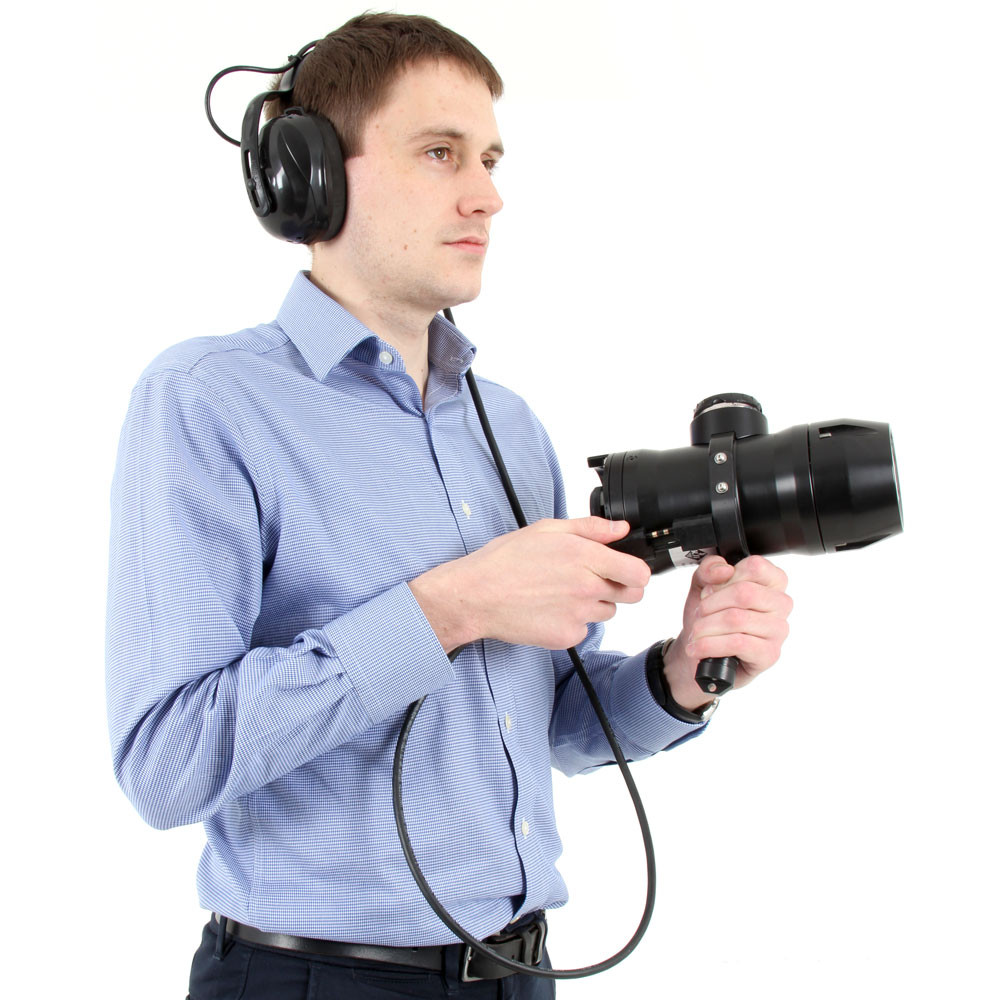

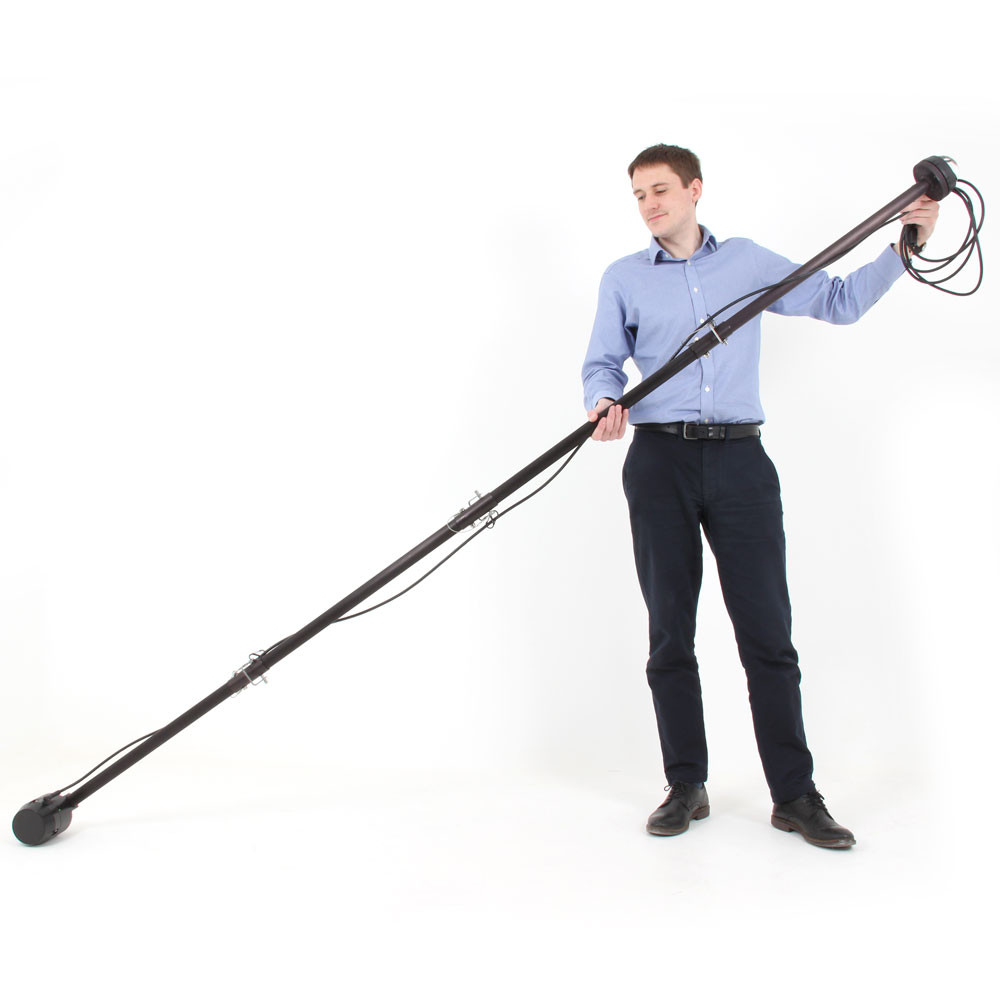

The PRS-275 is a diver pinger receiver that can be converted to surface pinger receiver using a separate directional hydrophone and user adjustable staff assembly.

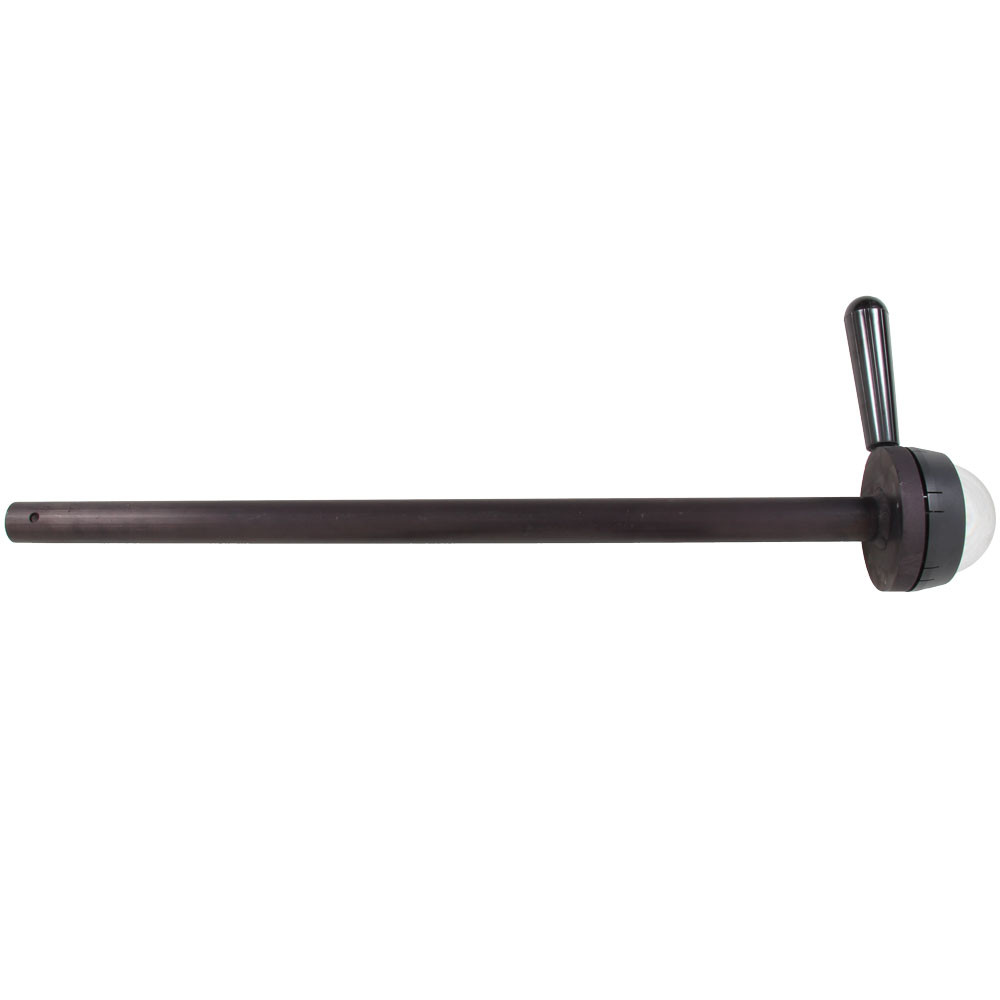

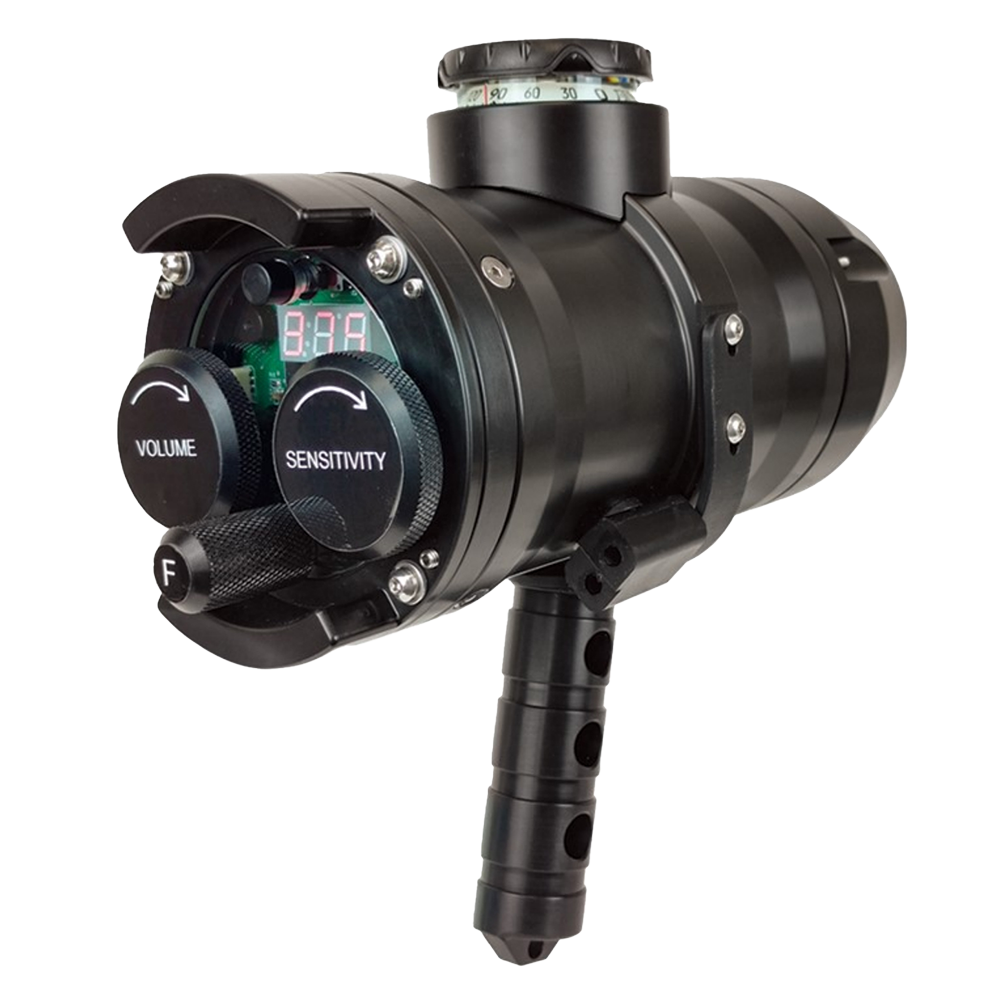

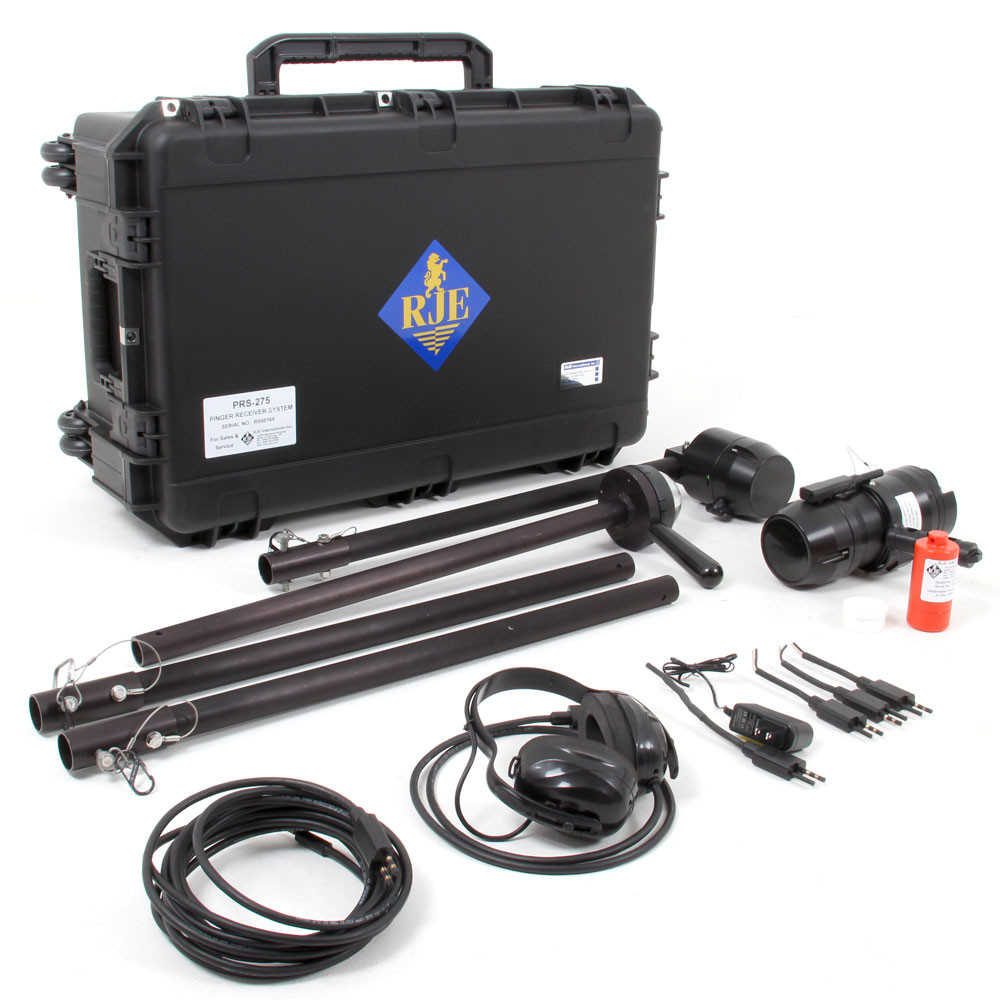

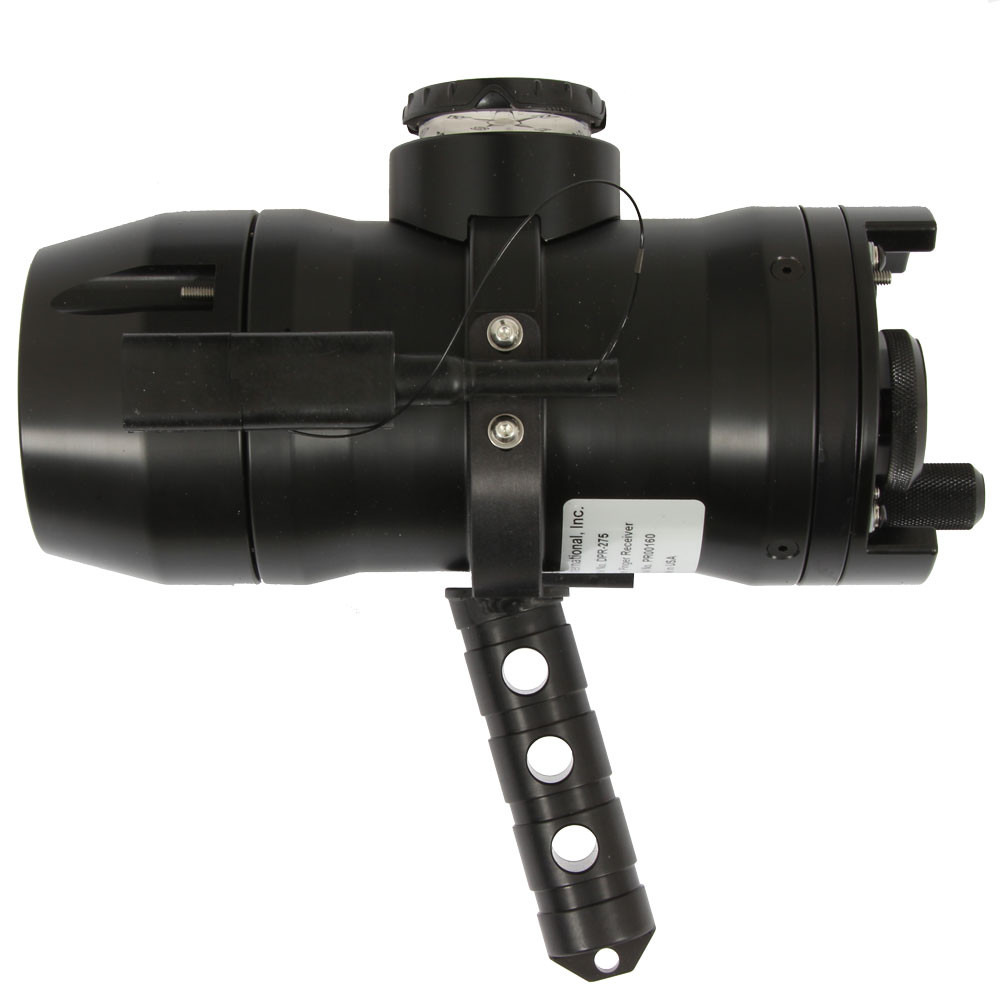

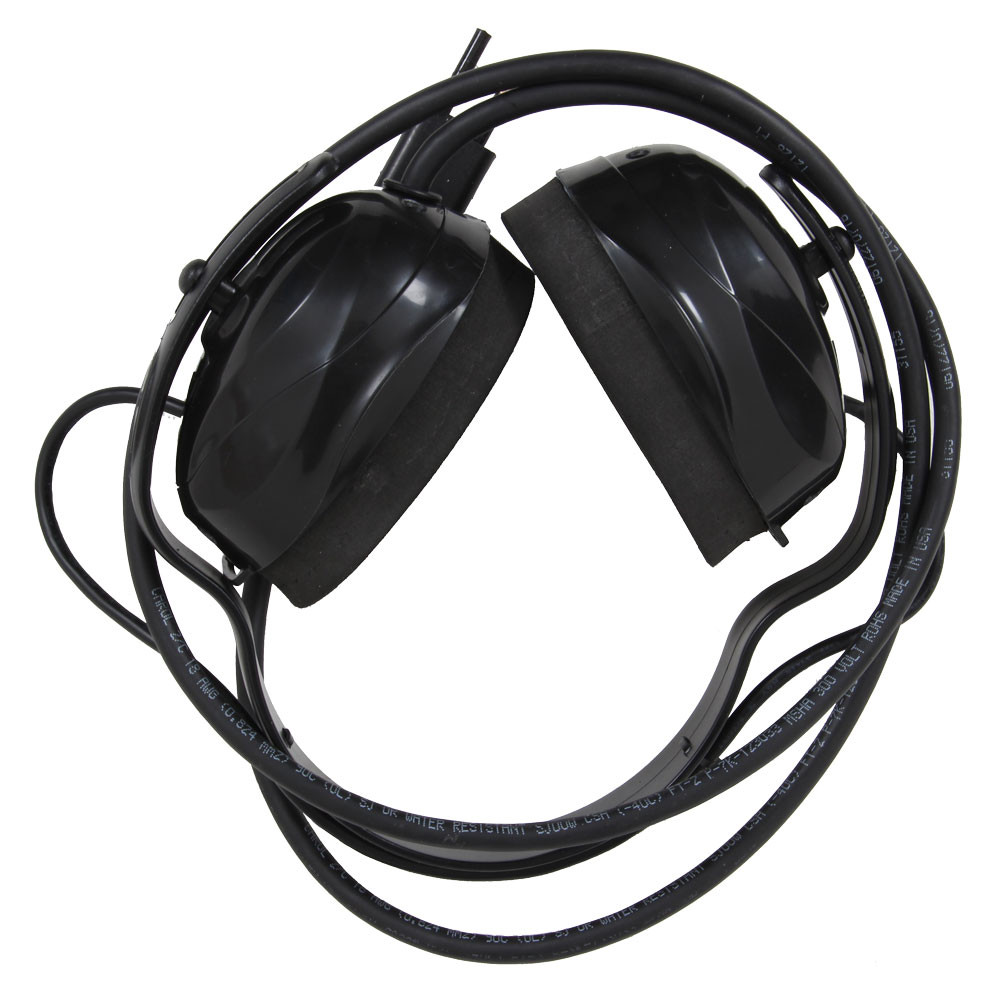

The system includes the DPR-275 diver pinger receiver, waterproof headset, adjustable staff assembly with directional hydrophone, cable assembly and shipping container.
Key Features
- Frequency Range: 5 to 80kHz
- Bandwidth: 1kHz
- Hydrophone Directivity: Typically 30º
- Transducer Beam Pattern: 30º @ 27kHz; 25º @ 37.5kHz
- LCD Display: Frequency
- LED Display: Signal Strength Meter
- Low Battery: LED

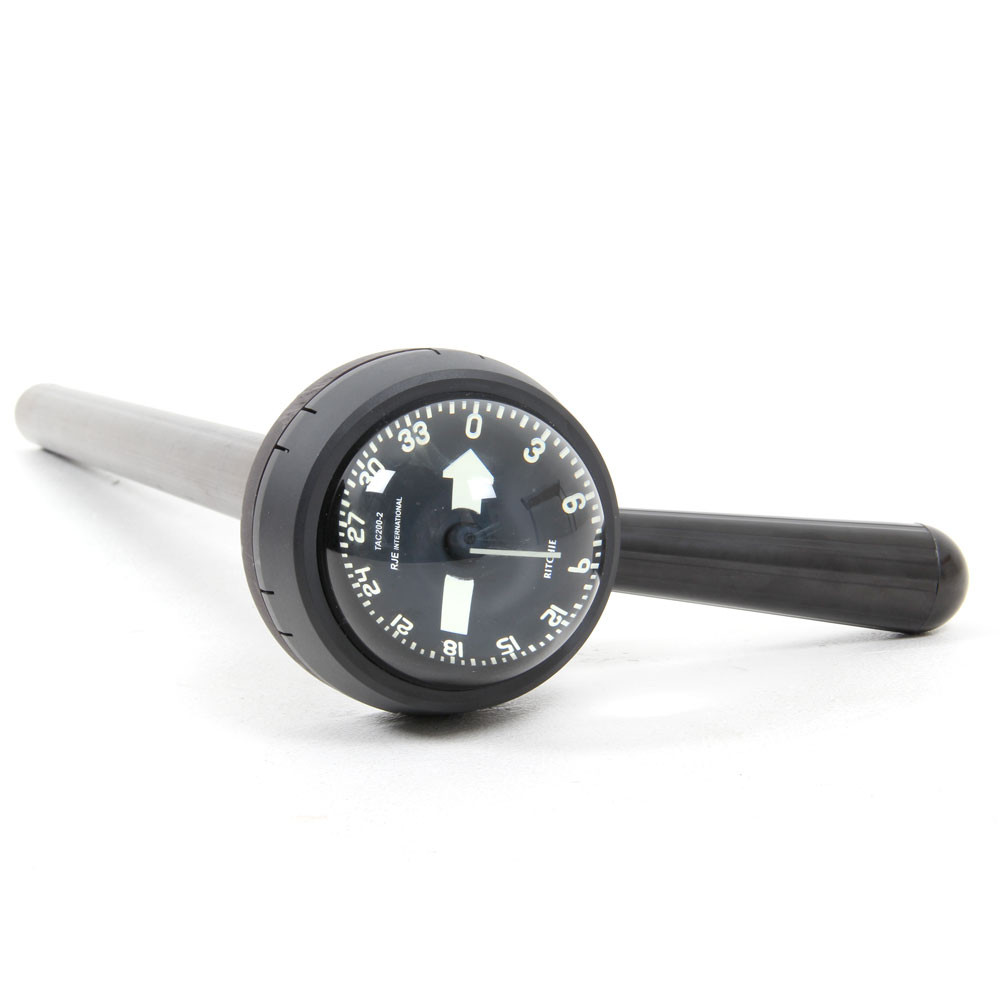

- Compass: Analog on Housing and Staff Assy
- Power Source: Rechargeable Battery
- Battery Life: 8 Hours

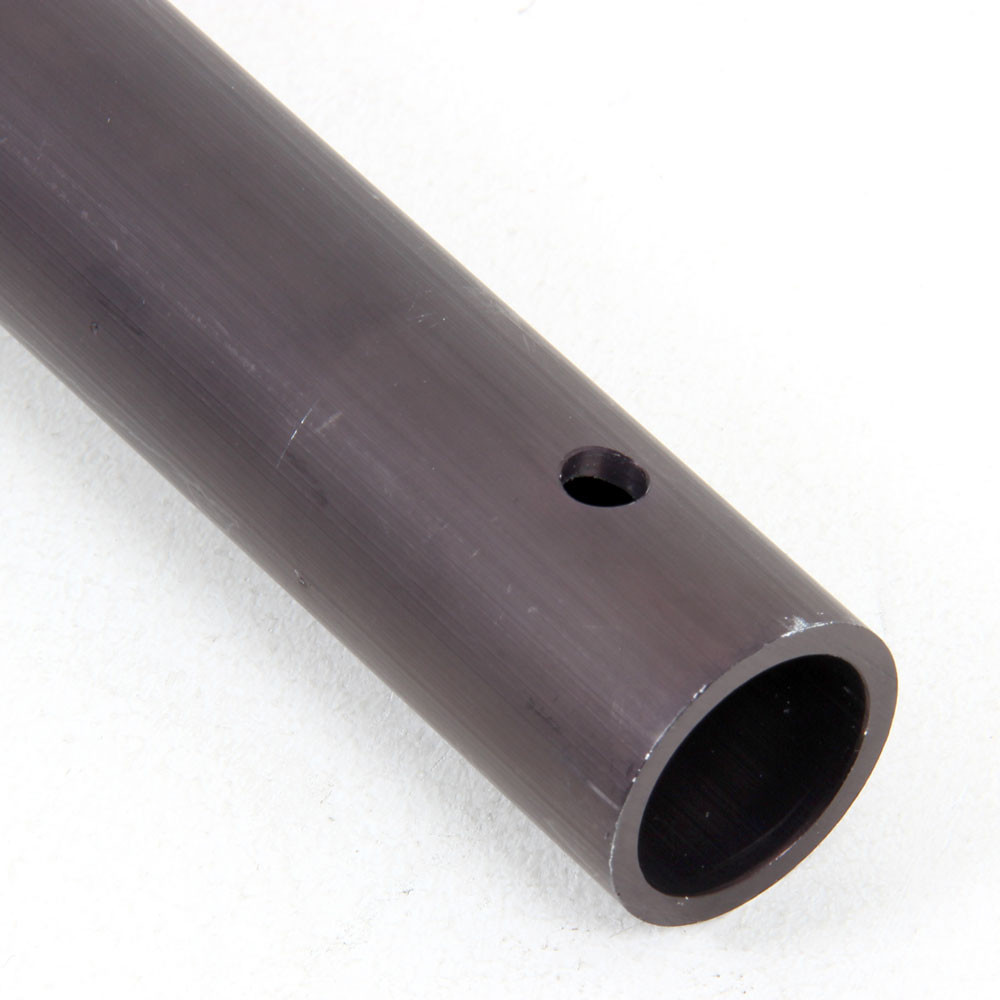

- Surface Hydrophone Staff Assy: Anodised Aluminum, 10ft (3m)
- Surface Hydrophone Cable: 20ft (6m)
- Operating Depth: 660ft (200m)
- Weight in Air: 4.5lbs (2.0kg)
- Receiver Weight in Water: 12oz (190gr)
- Receiver Housing Material: Corrosion Resistant Delrin
- Housing Length: 10.0in (25.4cm)
- Housing Diameter: 4.0in (10.4cm)
- Specifications are subject to change without notice
