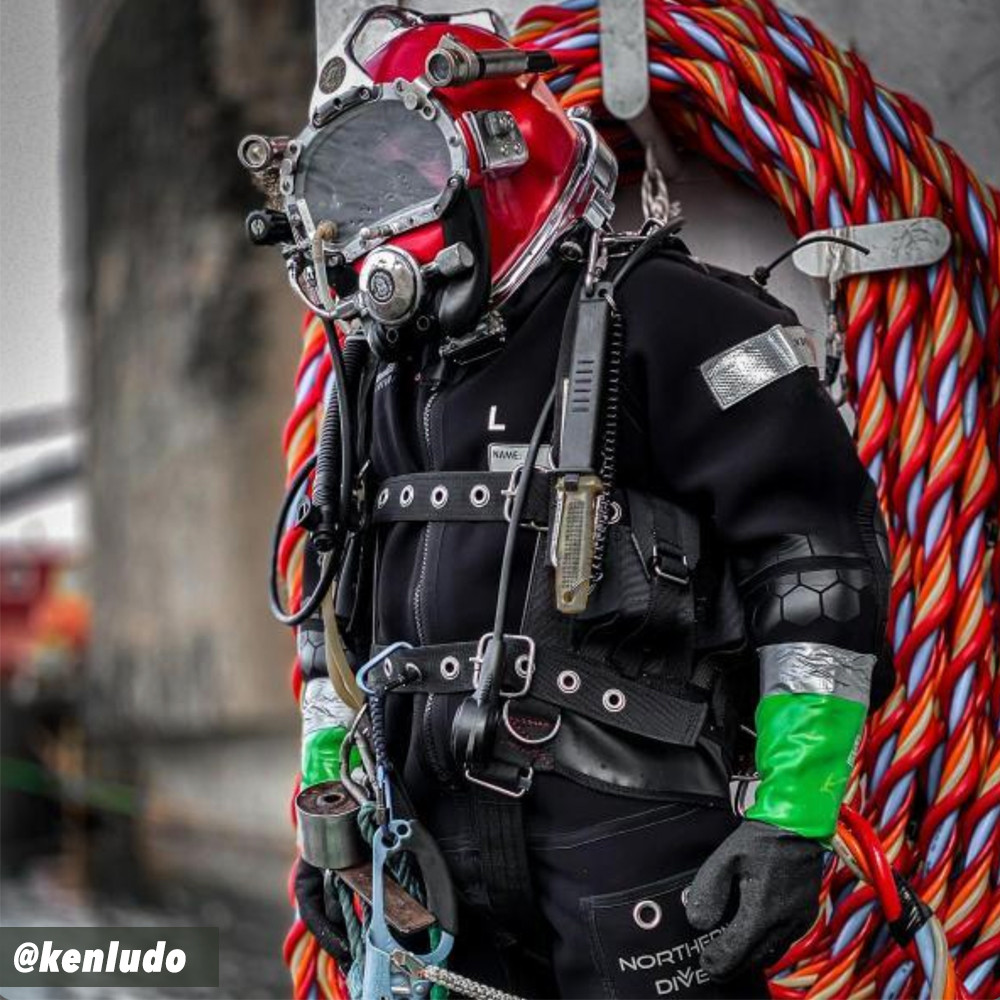

Evolution 8 Hotwater Suit
Description
Our hotwater suit has been developed over the past 20 years. The suit is based around a unique heavy anodized aluminium water distribution valve, with its unique 360 degree stainless steel quick connector.
The water flows along an anti-kink rubber pipe profile, designed by, and unique to, Northern Diver.
The pipes are held in place by a padded neoprene cover for comfort. All pipe runs are directed for comfort during those long bell runs.
The arms and legs can be trimmed to length and the pipe passed backwards through the ladder hole adjusters. There is the facility on the pipe, for the front chest and back neck, to take a hot water feed to the mask to heat the face plate.
The suit is supplied with a 1/4” inline double-barb plastic connector.
The shell body is constructed from high grade non-shrink neoprene with a high rubber solids content, lined on the outside with a durable Swiss pique canvas fabric.

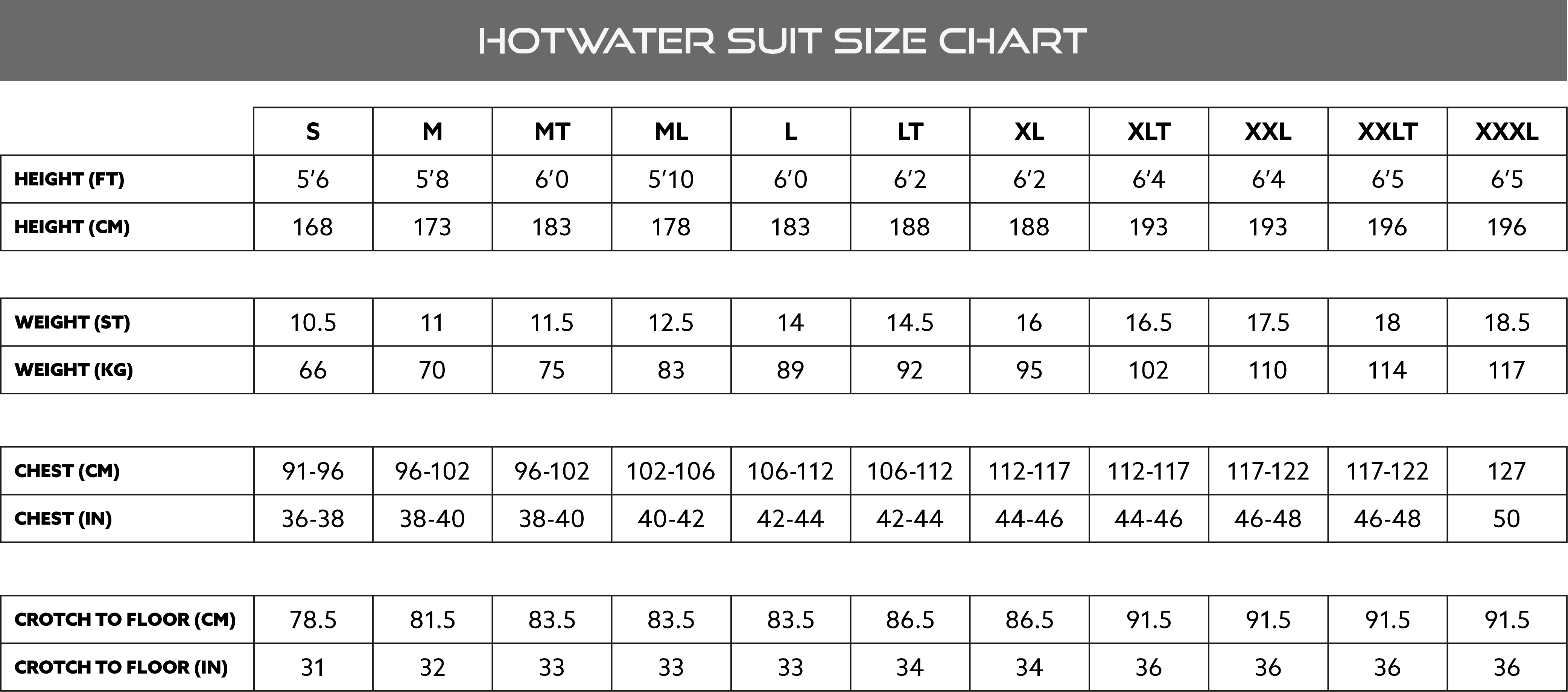

| SUIT SIZES | S | M | MT | ML | MLT | L | LT | XL | XLT | XXL | XXLT | XXXL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HEIGHT | 5`6 168 cm |
5`8 173 cm |
6` 183 cm |
5`10 178 cm |
6` 183 cm |
6` 183 cm |
6`2 188 cm |
6`2 188 cm |
6`4 193 cm |
6`4 193 cm |
6`5 196 cm |
6`5 196 cm |
| WEIGHT | 10 st 64 kg |
11 st 70 kg |
11.5 st 75 kg |
12.5 st 83 kg |
13.5 st 85 kg |
14 st 89 kg |
14.5 st 92 kg |
16 st 95 kg |
16.5 st 102 kg |
17.5 st 110 kg |
18 st 114 kg |
18.5 st 117 kg |
| CHEST | 36" - 38" 91 - 96 cm |
38" - 40" 96 - 102 cm |
38" - 40" 96 - 102 cm |
40" - 42" 101 - 106 cm |
40" - 42" 101 - 106 cm |
42" - 44" 107 - 112 cm |
42" - 44" 107 - 112 cm |
44" - 46" 112 - 117 cm |
44" - 46" 112 - 117 cm |
46" - 48" 117 - 122 cm |
46" - 48" 117 - 122 cm |
50" 127 cm |
| C-FLOOR | 31" 79 cm |
32" 81 cm |
33" 85 cm |
33" 84 cm |
34" 86 cm |
33" 85 cm |
34" 86 cm |
34" 86 cm |
36" 91 cm |
36" 91 cm |
36" 91.5 cm |
36" 91.5 cm |
Key Features
- Tested under the Balmoral UK platform, North Sea at 355 metres depth
- Diver climate control system
- Polymer reinforced knee and shin pads. This and the adjacent polymer reinforced embossing which circles the legs in the calf area is ideal for duct taping boots or socks to the suit.

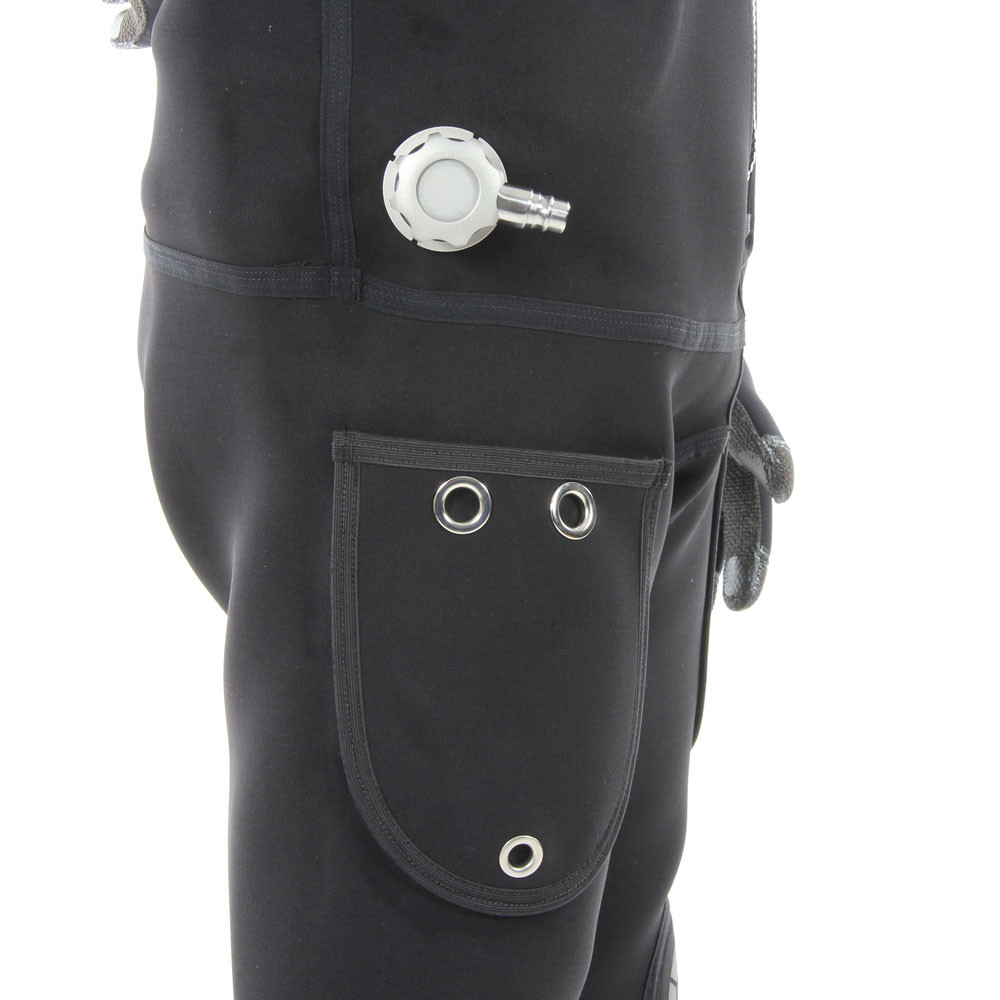

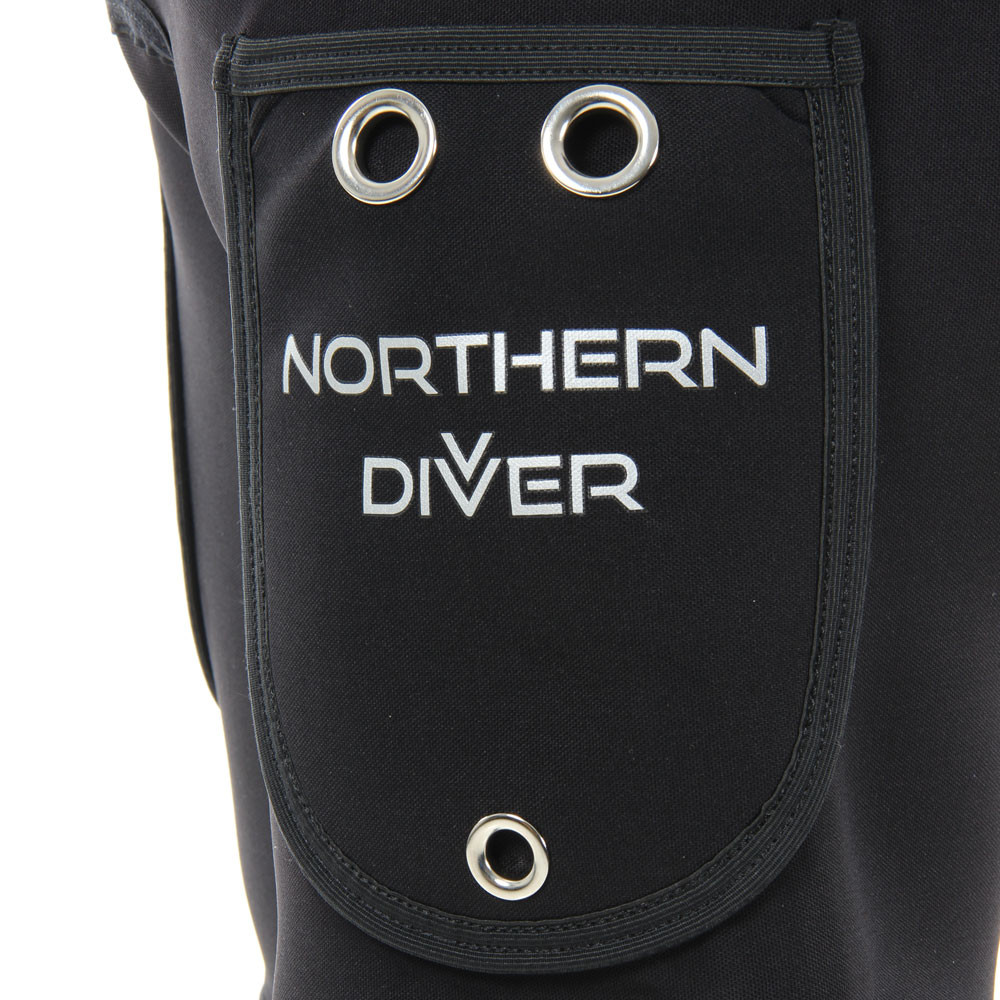

- Two deep pockets with drain holes and equipment attachment eyelets.

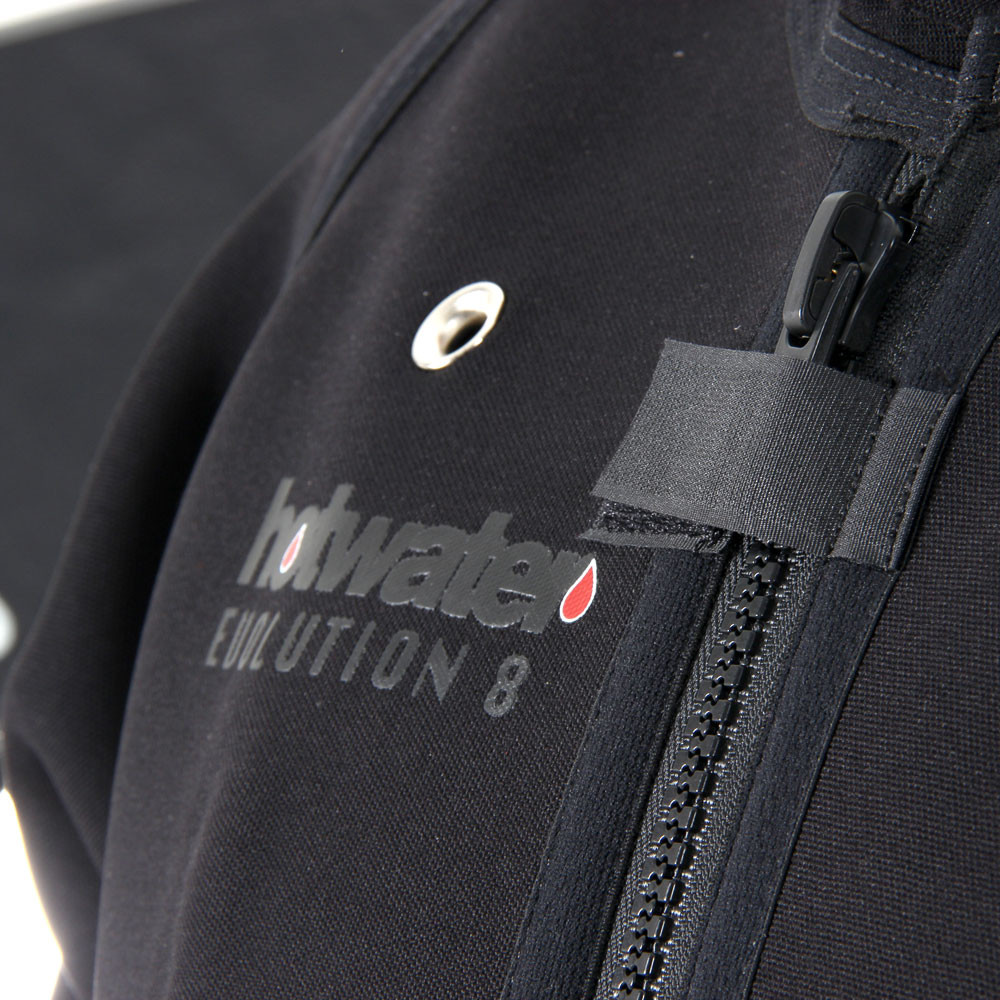

- Suit closure is by a heavy-duty Vislon YKK zip
- Wrap-over neoprene neck with fleece lining
- Supplied with one ID badge which is secured to the suit with hook and loop fastening. Spare tags are available on request.
- Neoprene shoulder epaulettes can be used as shoulder harness retainers which prevent your harness from slipping off your shoulders.
- Light reflective strips on upper arms
- Plastic embossed elbow area which continues round the arm, which is ideal for duct taping gloves to the suit. Wrist area has two pieces of diagonal hook and loop fastening for glove attachment.

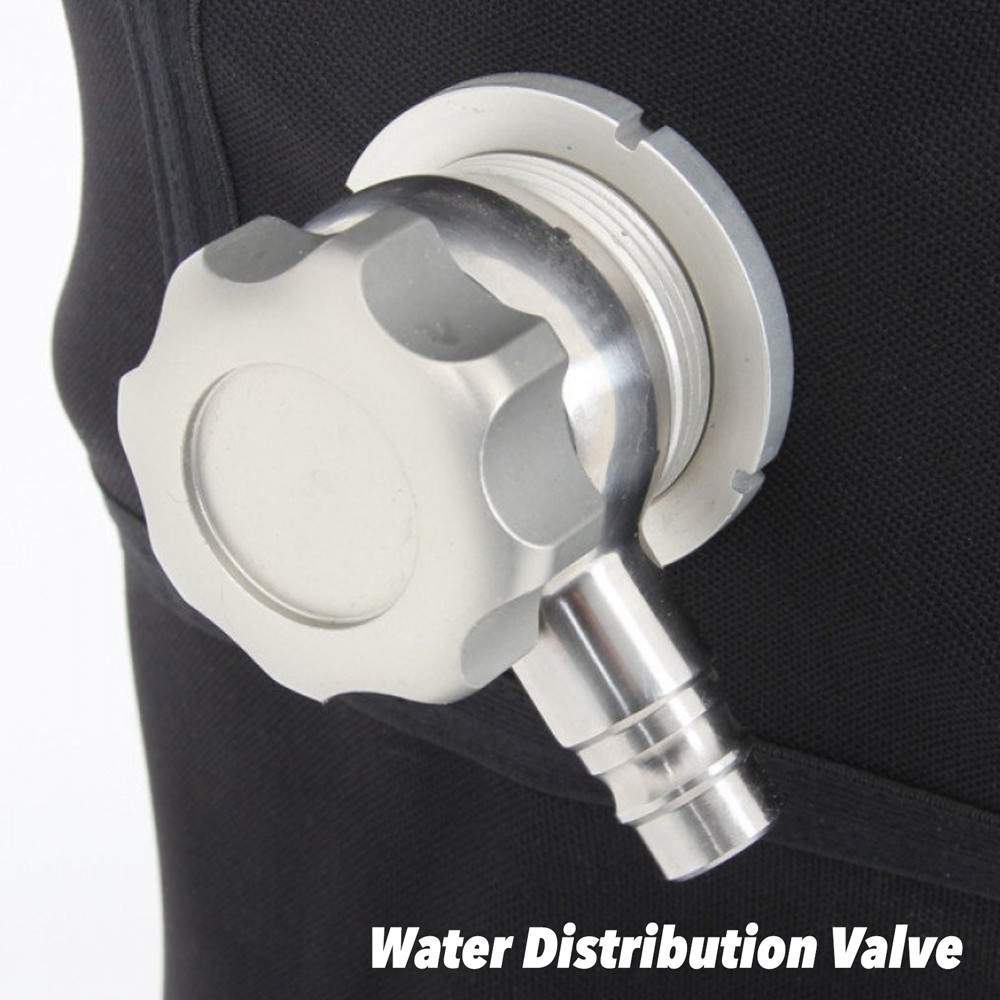

- Anodised aluminium water distribution valve with 360 stainless steel swivel connector. When valve is not feeding the suit it dumps to the rear via control knob.
- Featuring new flat pipe technology for additional comfort and an improved flow rate of 20%.

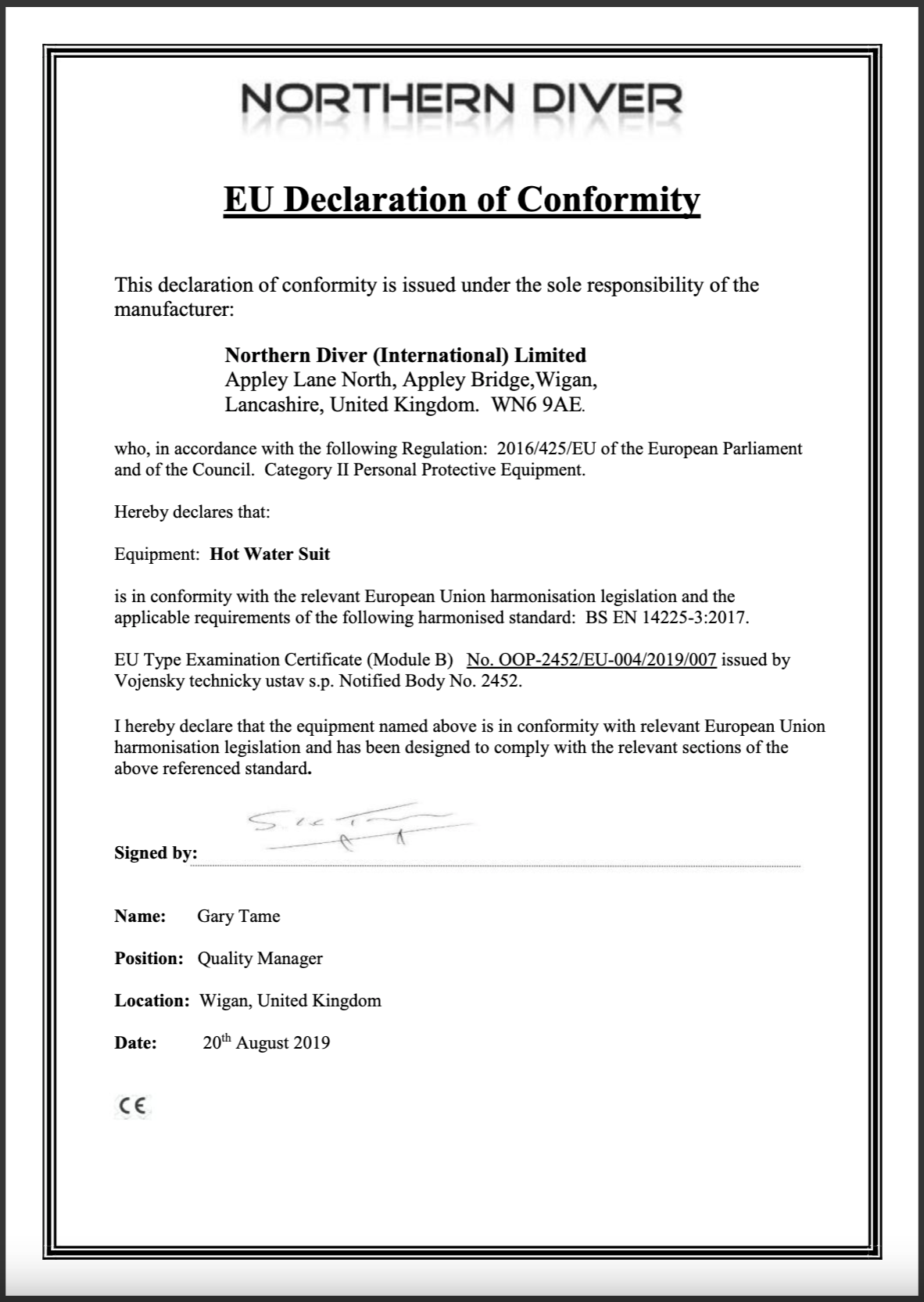

- CE approved suit for use in excess of 50 metres depth
