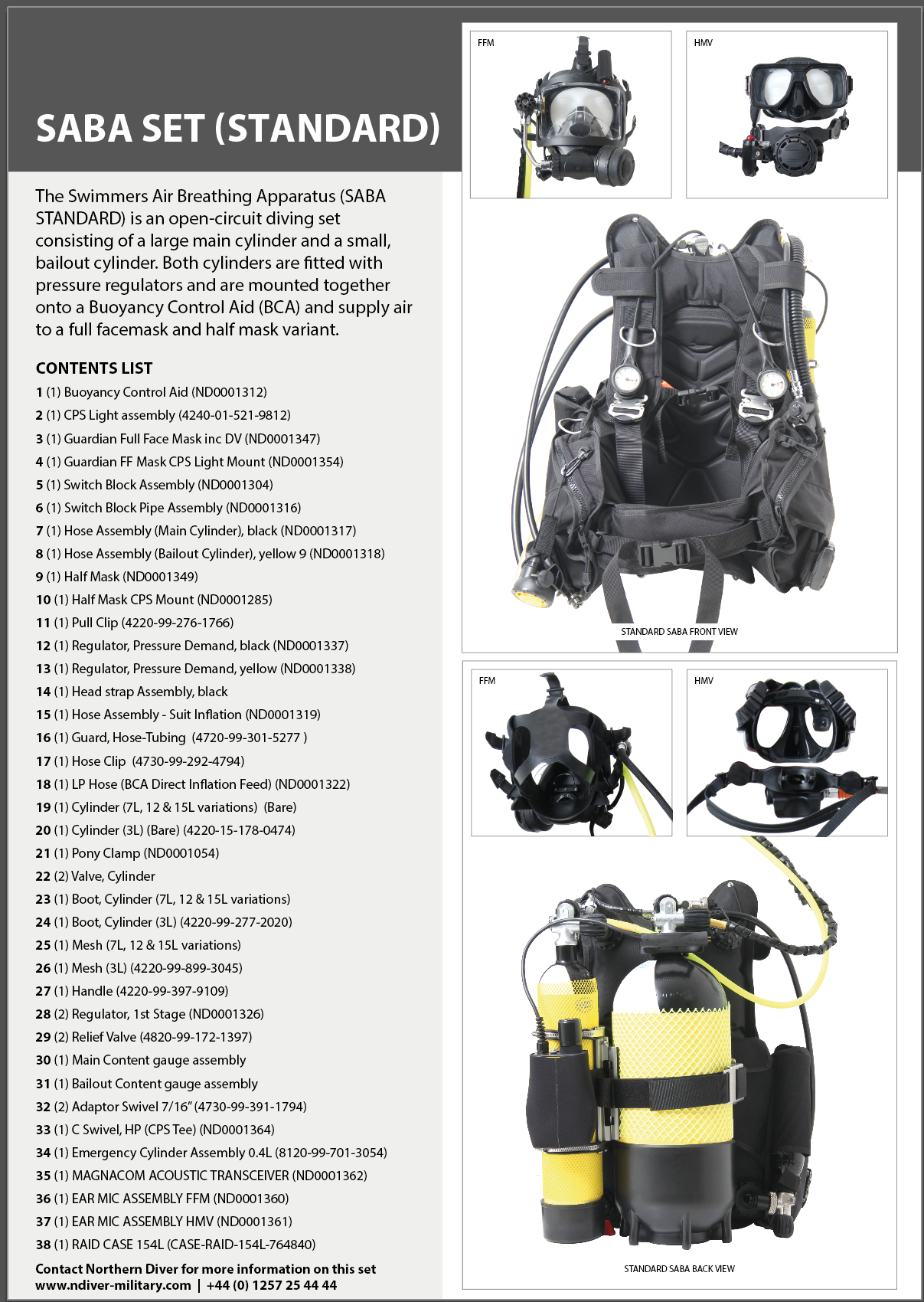

SABA - Swimmers Air Breathing Apparatus
Description

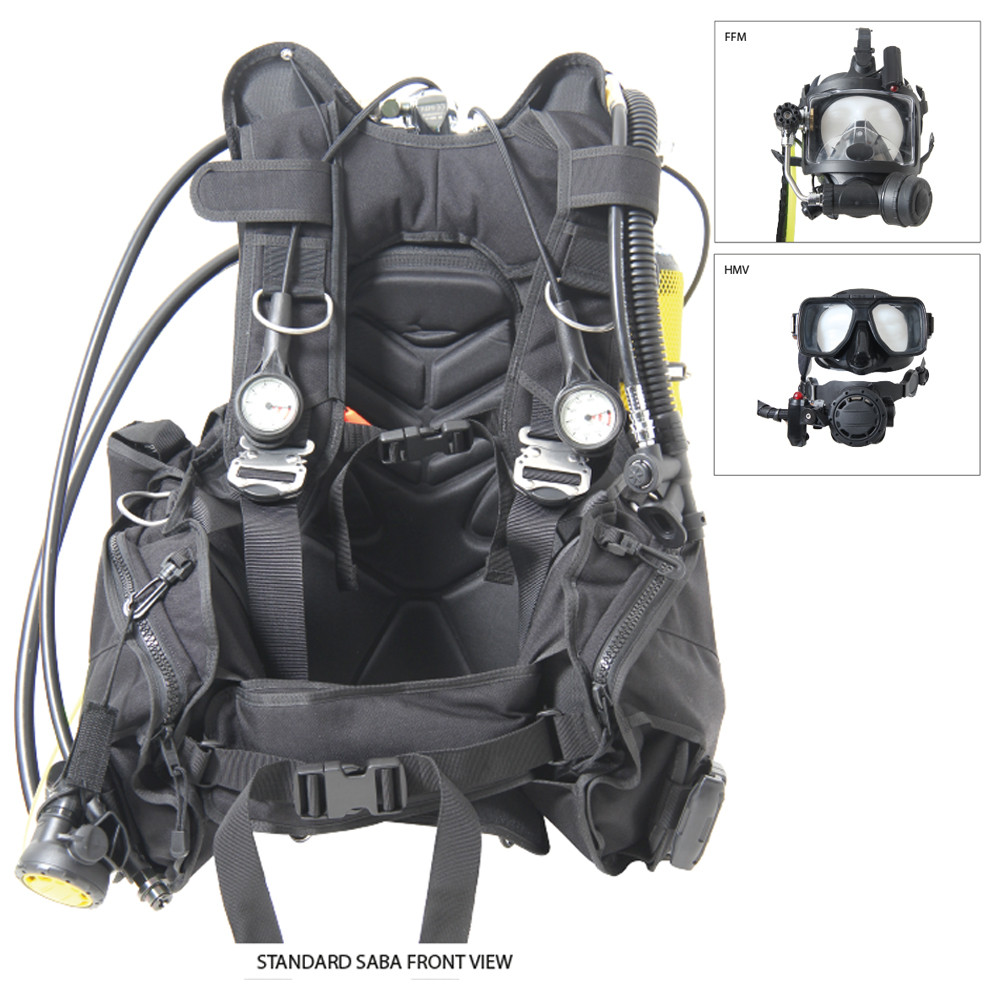

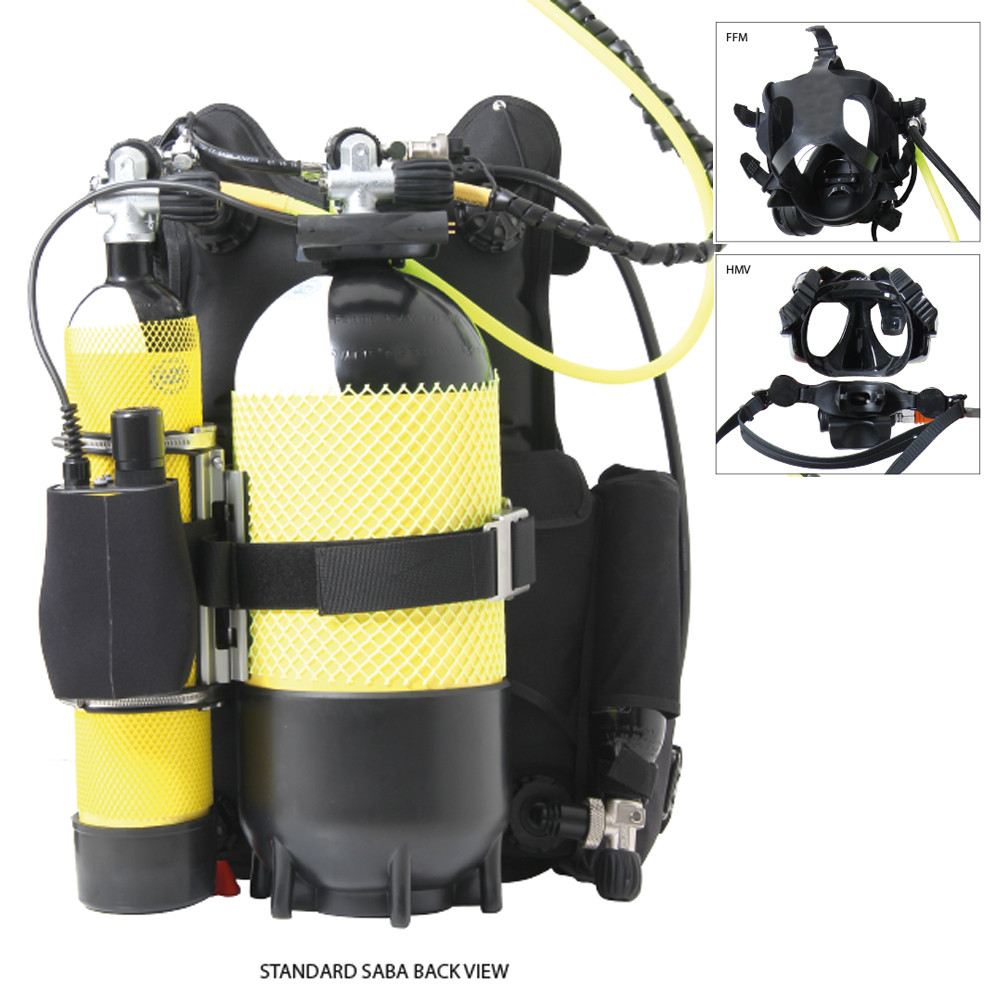

The Swimmers Air Breathing Apparatus (SABA STANDARD) is an open-circuit diving set consisting of a large main cylinder and a small, bailout cylinder. Both cylinders are fitted with pressure regulators and are mounted together onto a Buoyancy Control Aid (BCA) and supply air to a full face mask and half mask variant.

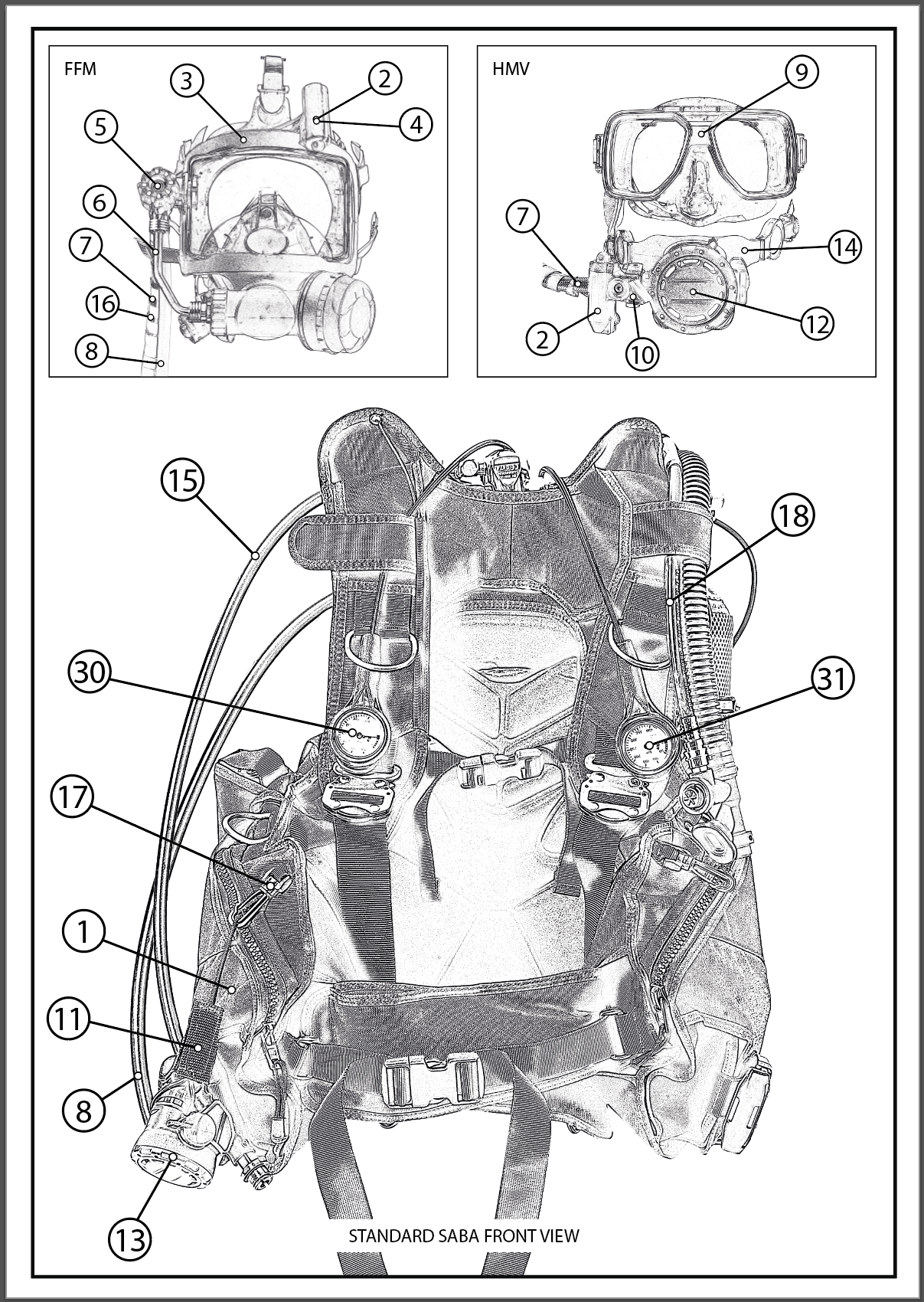

Contents LIST

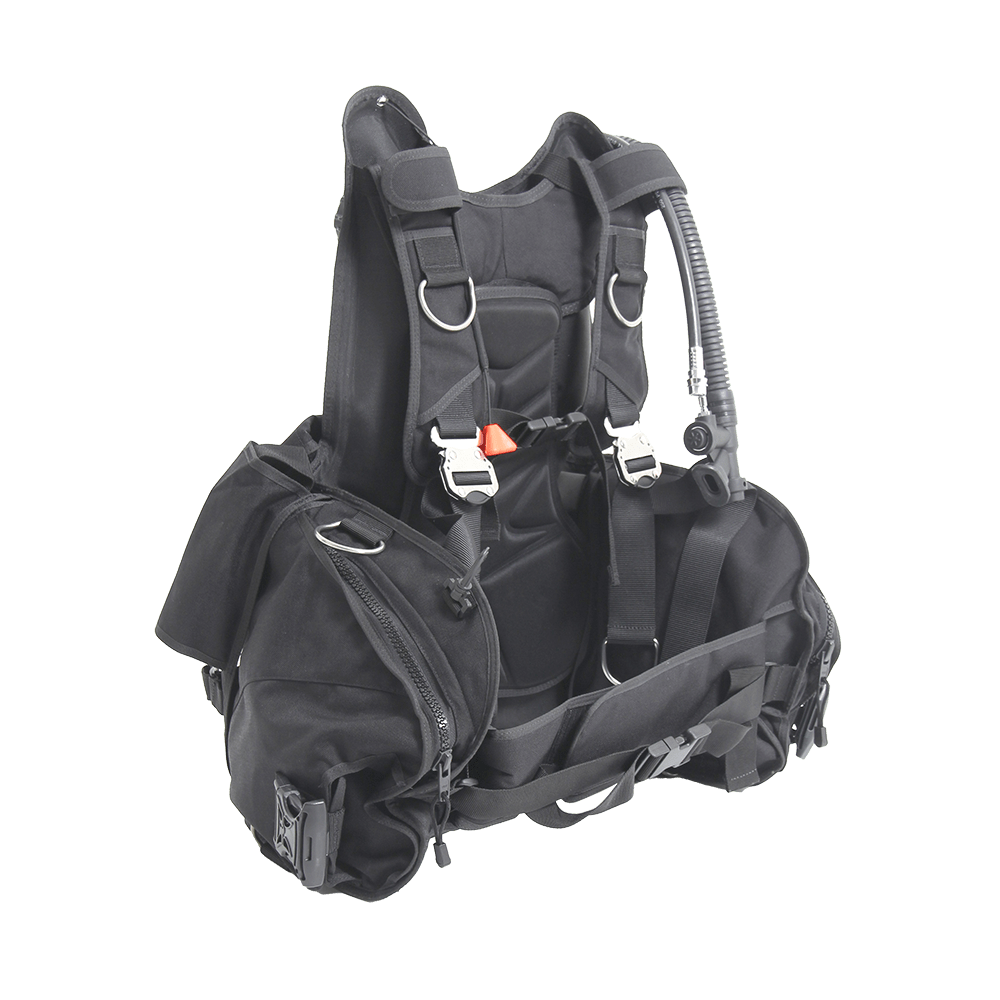

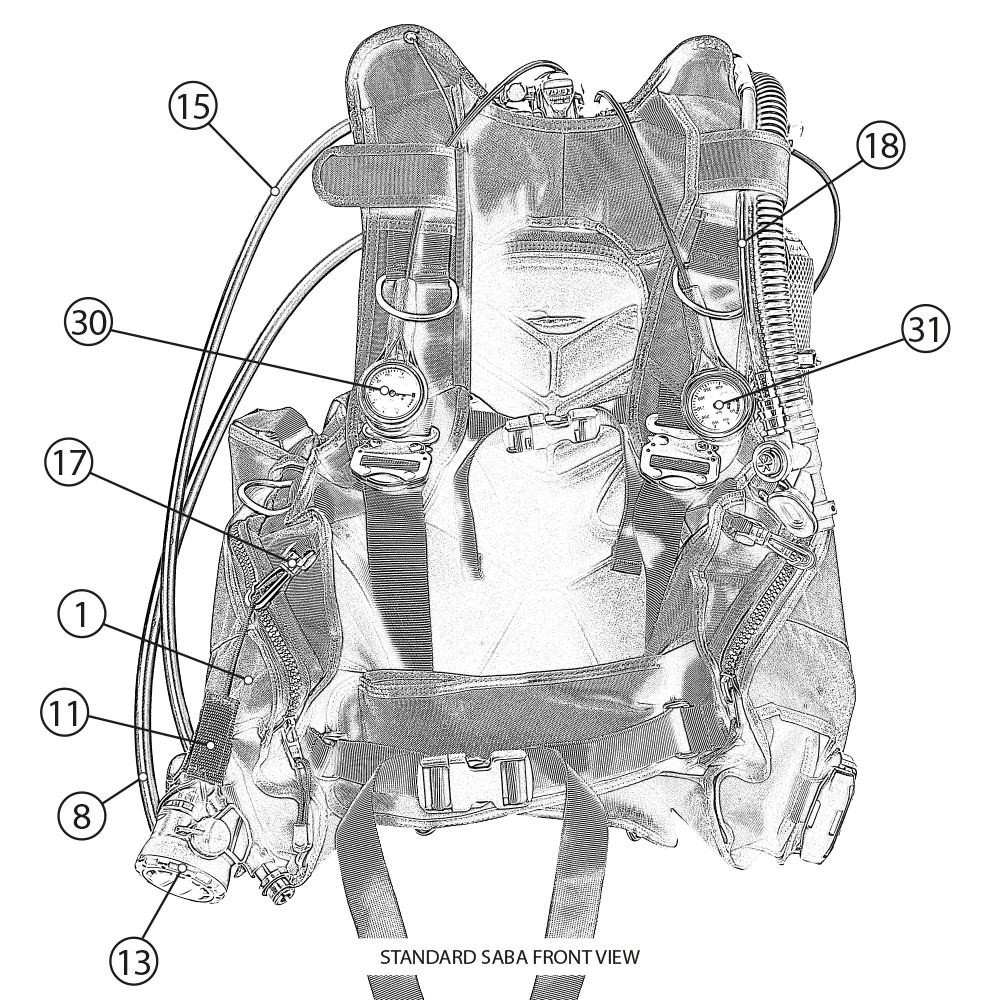

1 (1) Buoyancy Control Aid (ND0001312)
2 (1) CPS Light assembly (4240-01-521-9812)

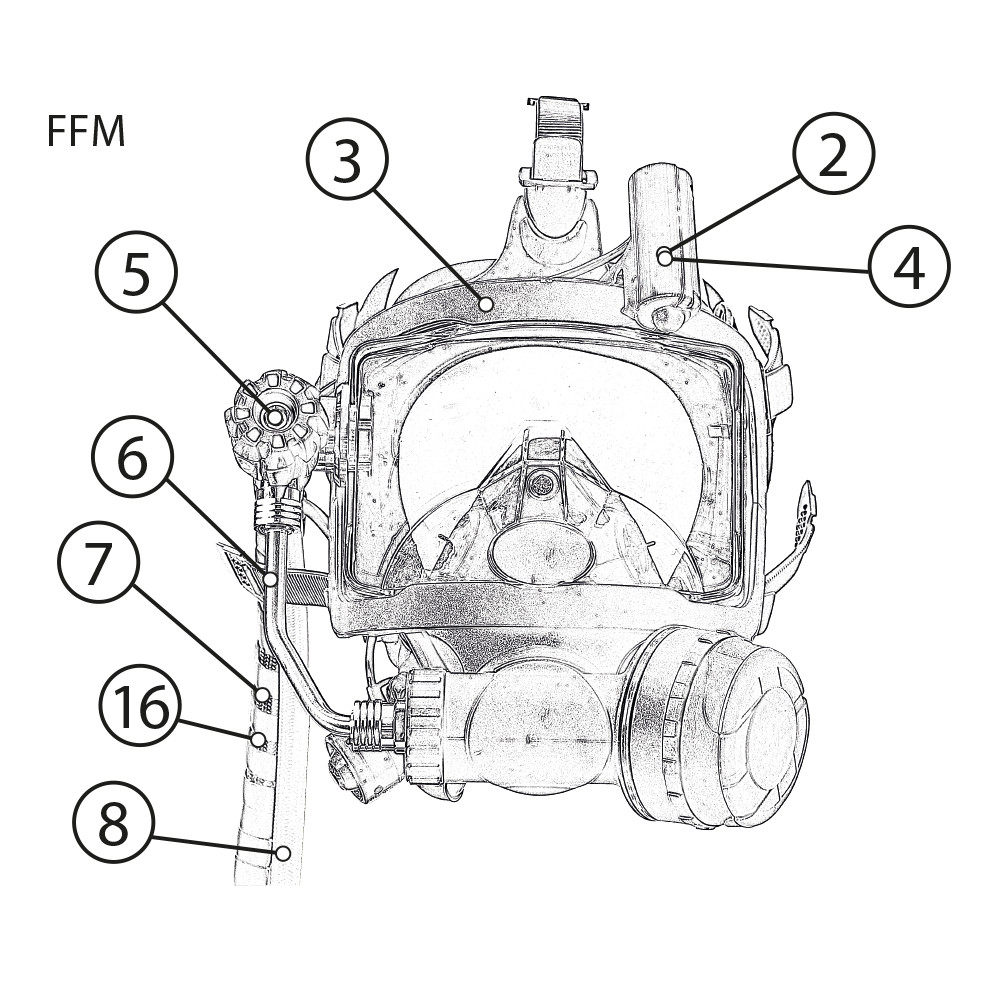

3 (1) Guardian Full Face Mask inc DV (ND0001347)
4 (1) Guardian FF Mask CPS Light Mount (ND0001354)
5 (1) Switch Block Assembly (ND0001304)
6 (1) Switch Block Pipe Assembly (ND0001316)
7 (1) Hose Assembly (Main Cylinder), black (ND0001317)
8 (1) Hose Assembly (Bailout Cylinder), yellow 9 (ND0001318)

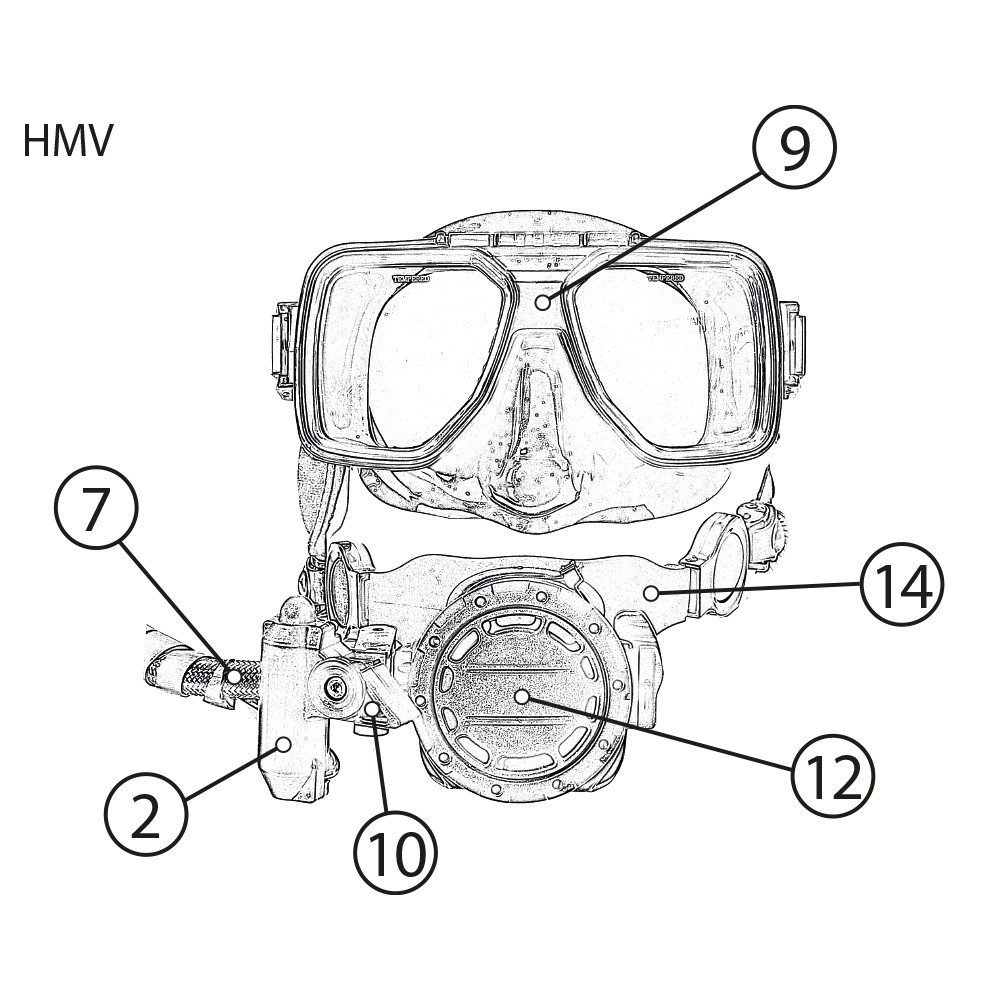

9 (1) Half Mask (ND0001349)
10 (1) Half Mask CPS Mount (ND0001285)
11 (1) Pull Clip (4220-99-276-1766)
12 (1) Regulator, Pressure Demand, black (ND0001337)
13 (1) Regulator, Pressure Demand, yellow (ND0001338)
14 (1) Head strap Assembly, black
15 (1) Hose Assembly - Suit Inflation (ND0001319)
16 (1) Guard, Hose-Tubing (4720-99-301-5277 )
17 (1) Hose Clip (4730-99-292-4794)
18 (1) LP Hose (BCA Direct Inflation Feed) (ND0001322)

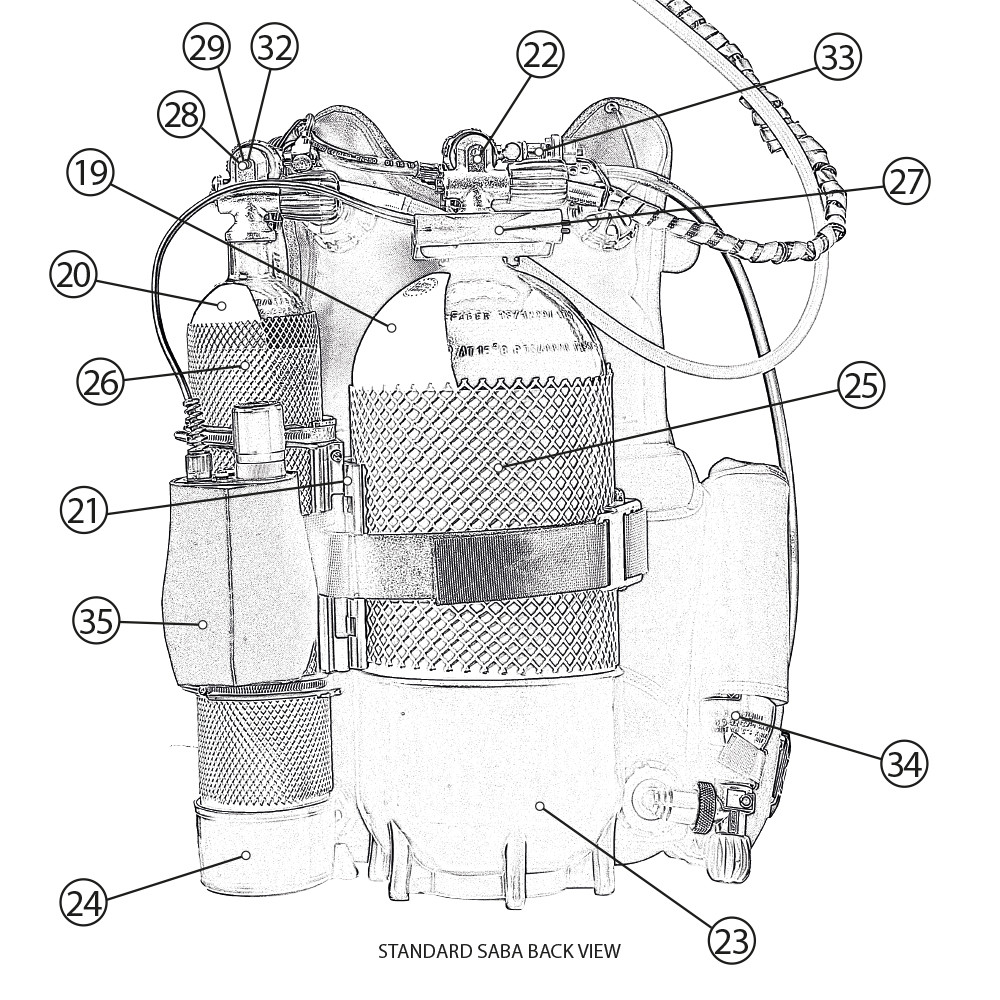

19 (1) Cylinder (7L, 12 & 15L variations) (Bare)
20 (1) Cylinder (3L) (Bare) (4220-15-178-0474)
21 (1) Pony Clamp (ND0001054)
22 (2) Valve, Cylinder
23 (1) Boot, Cylinder (7L, 12 & 15L variations)
24 (1) Boot, Cylinder (3L) (4220-99-277-2020)
25 (1) Mesh (7L, 12 & 15L variations)
26 (1) Mesh (3L) (4220-99-899-3045)
27 (1) Handle (4220-99-397-9109)
28 (2) Regulator, 1st Stage (ND0001326)
29 (2) Relief Valve (4820-99-172-1397)
30 (1) Main Content gauge assembly
31 (1) Bailout Content gauge assembly
32 (2) Adaptor Swivel 7/16” (4730-99-391-1794)
33 (1) C Swivel, HP (CPS Tee) (ND0001364)
34 (1) Emergency Cylinder Assembly 0.4L (8120-99-701-3054)
35 (1) MAGNACOM ACOUSTIC TRANSCEIVER (ND0001362)

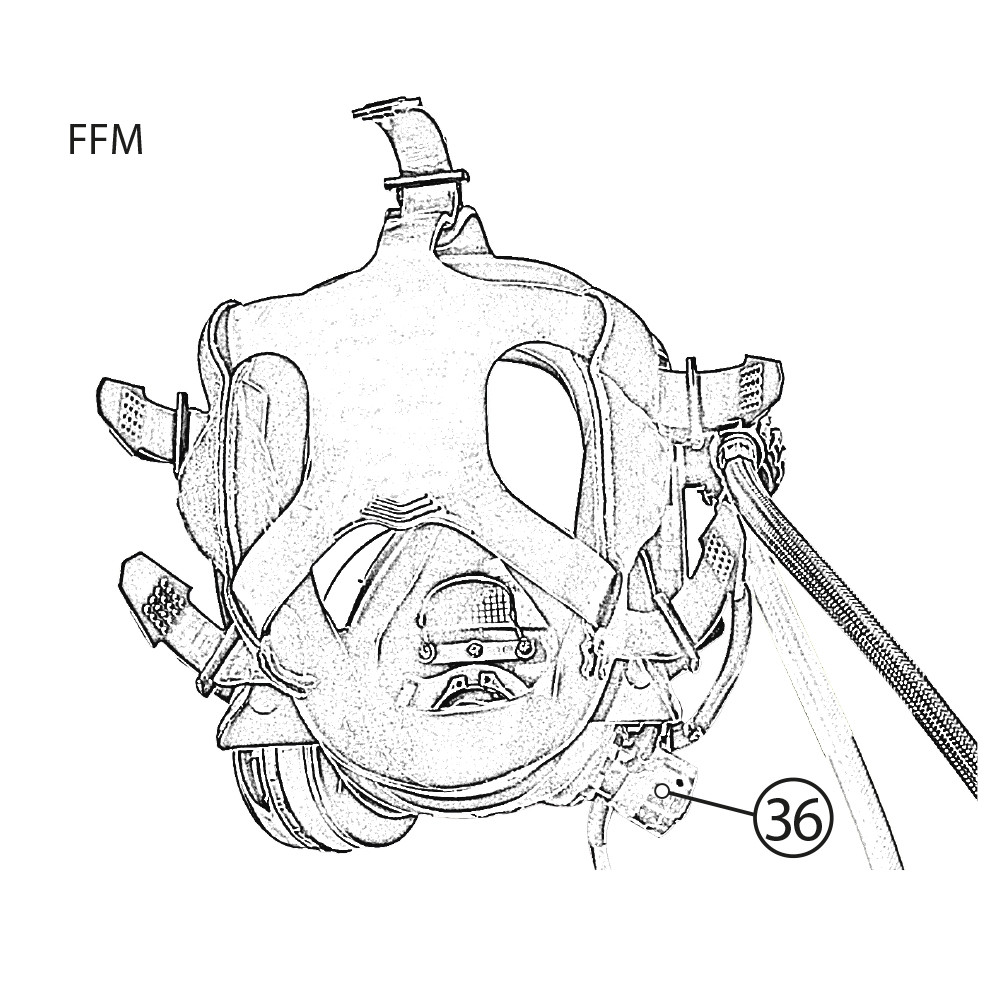

36 (1) EAR MIC ASSEMBLY FFM (ND0001360)

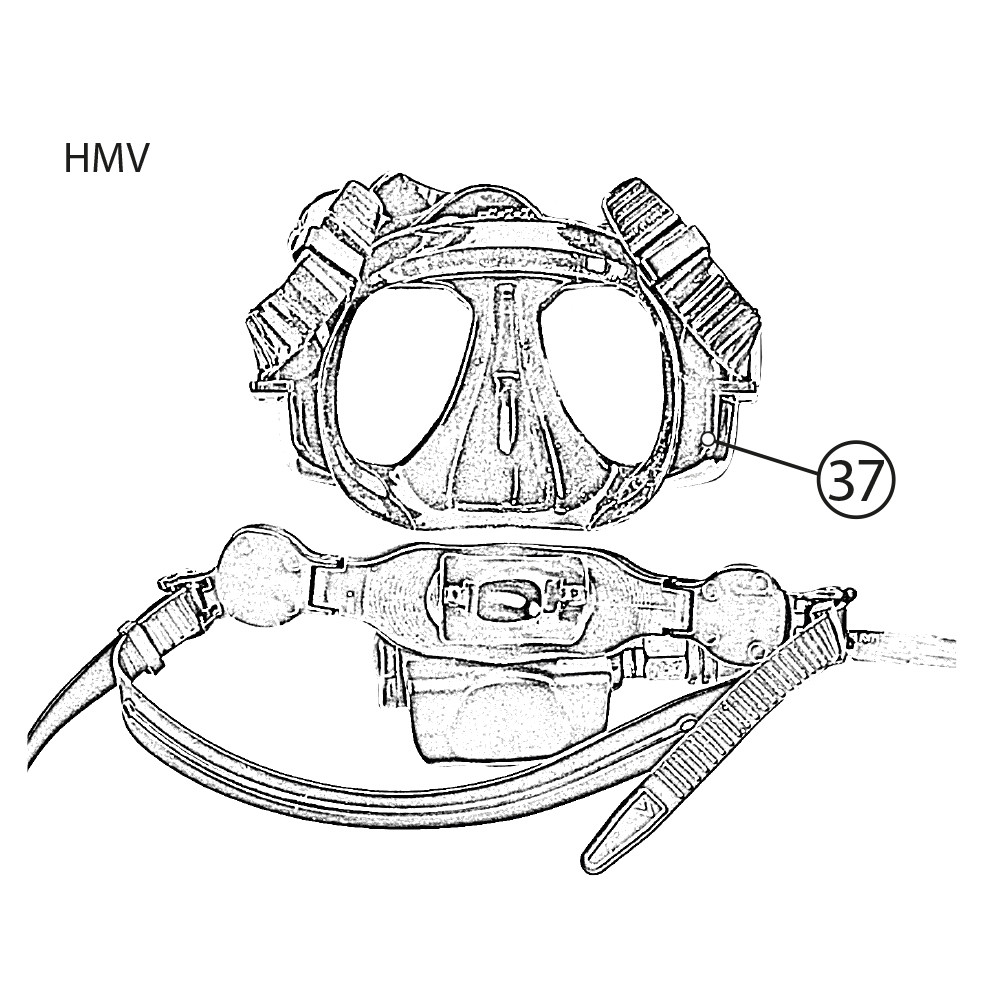

37 (1) EAR MIC ASSEMBLY HMV (ND0001361)

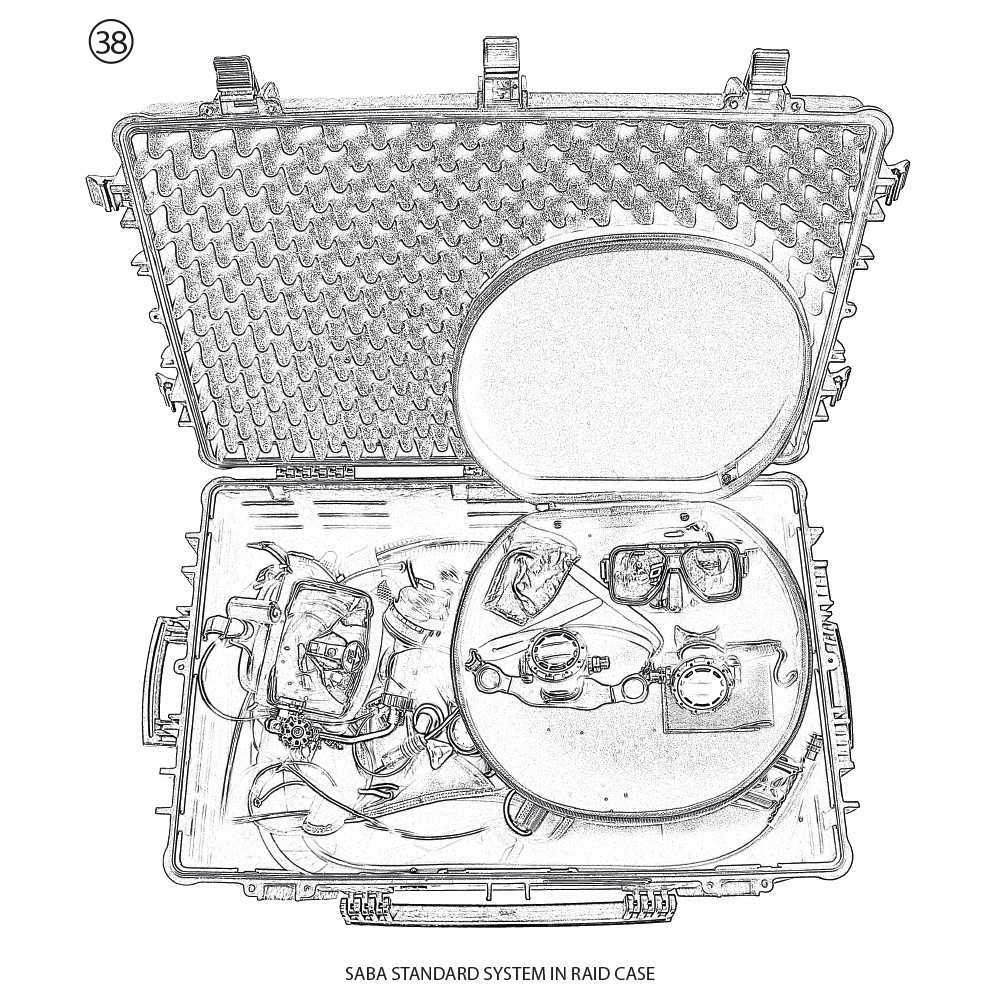

38 (1) RAID CASE 154L (CASE-RAID-154L-764840)
