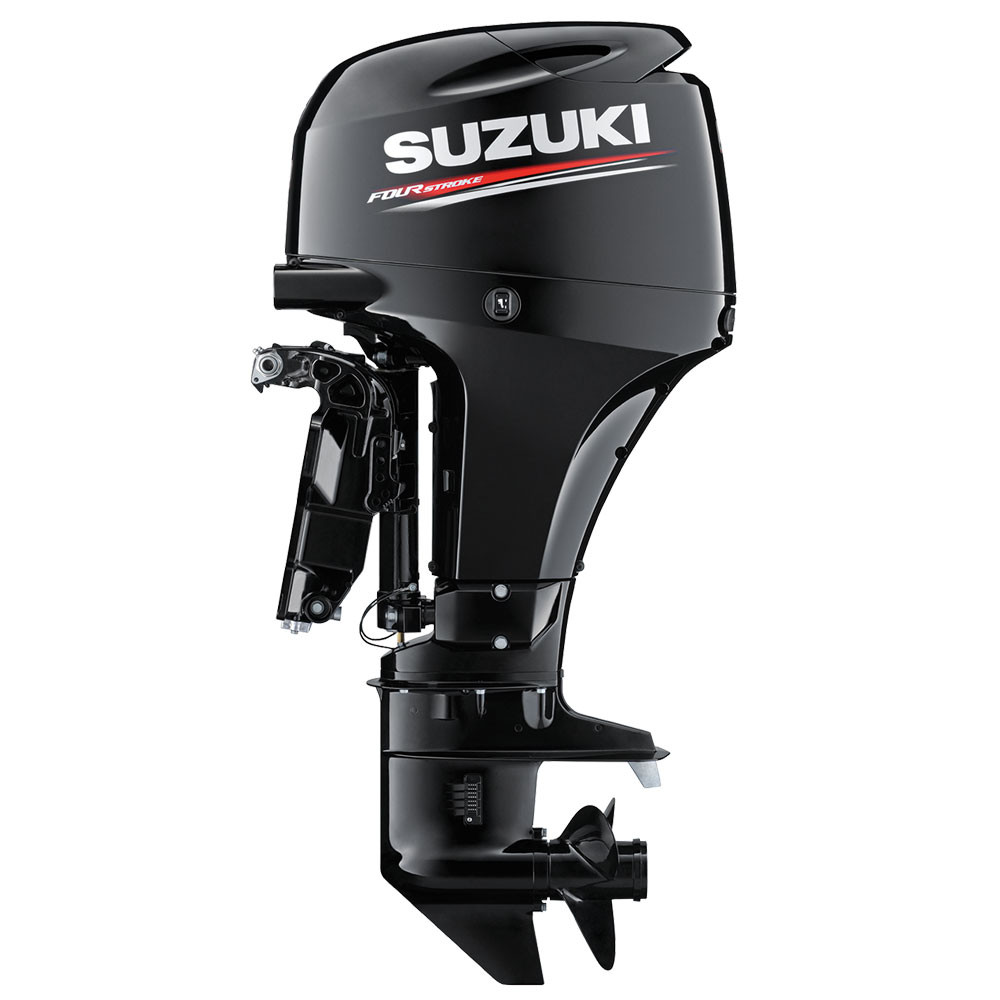

Suzuki Engine DF40ATL

Description

The DF40A range provides a high performance, compact and powerful outboard making it the ideal outboard for all kinds of boats and uses.

Self-adjusting timing chain

Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times.

Easy start system

With the easy start system there’s no need to hold the key, just turn it once and the system stays engaged until the engine starts. This smooth and simple design feature gets you up on the water quicker.

Lean Burn control system

Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.

Largest reduction gear ratio in its class

A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed.

Steering Type Remote
Tilt Power
Starter Electric
Shaft Length Long (508mm / 20 inches)
Weight 104kg

Key Features

  • Gear Shift: F-N-R
  • Exhaust: Through Prop Hub Exhaust
  • Recommended transom height: 508mm (20in)
  • Weight: 104Kg
  • Bore x Stroke: 72.5 x 76.0mm
  • Propeller Selection (pitch): 9" - 17"
  • Starting System: Electric
  • Engine Type: DOHC 12-Valve
  • Fuel Delivery System: Multi-Point Sequential Electronic Fuel Injection
  • No. of Cylinders: 3
  • Piston Displacement: 941cc
  • Maximum Output: 29.4KW
  • Full Throttle Operating Range: 5,000 - 6,000
  • Steering: Remote
  • Oil Pan Capacity: 2.7L
  • Fuel Tank Capacity: 25L (optional)
  • Ignition System: Fully-transistorised
  • Alternator: 12V 19A
  • Engine Mounting: Shear Mount
  • Trim Method: Power Trim and Tilt
  • Gear Ratio: 2.42:1
